Disc Plough Plow 3 Point Hitch Agricultural Tractor Attachment

Model 1LYQ-220/222 1LYQ-320/322 1LYQ-420/422 1LY(T)-225/230 1LY(T)-325/330 1LY(T)-425/430 1LY(T)-525/530 1LY(T)-625/630
Width of cut (mm) 400/440 600/660 800/880 500/600 750/900 1000/1200 1250/1500 1500/1800
Depth of cut (mm) 20-22 20-22 20-22 25-30 25-30 25-30 25-30 25-30
Dia of disc (mm) 510/560 510/560 510/560 660/710 660/710 660/710 660/710 660/710
Q’ty of disc 2 3 4 2 3 4 5 6
Weight (kg) 140 170 230 320 380 450 550 680
Tractor power (hp) 20-30 30-50 40-60 35-55 70-80 80-120 120-150 150-200
Mounted cat I类三点悬挂Cat I   II类三点悬挂Cat II
Availability:
Quantity:
  • LY

  • TAVOL

  • 8432100000

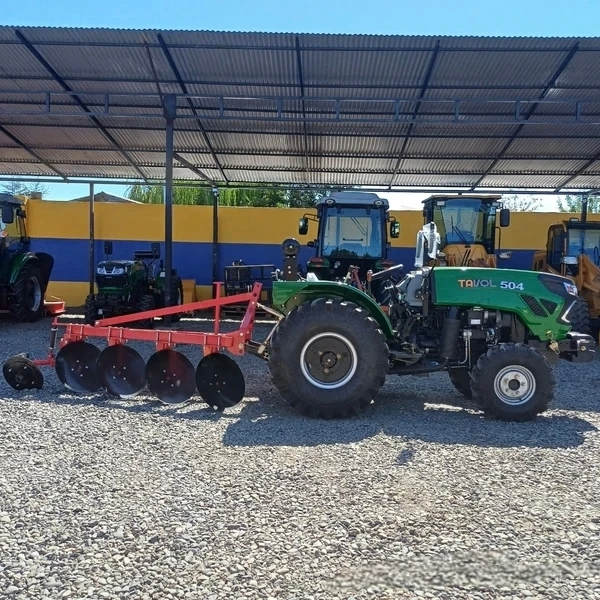

The Single-way disc plough is matched with four-wheel tractor, the discs of plough are revolving to furrow the land during operation. The mounted disc plow is especially suitable for land which have weeds, stems and frictional soil with small brick.


Product Advantage

1. Wide adaptability: The disc plow is especially suitable for heavy, dry, rocky, rooty soil, as well as complex weeds, erect stems, large soil specific resistance, and masonry fragments in the soil. Farmland plowing operations.

2. Low maintenance costs: Disc plows do not require frequent sharpening and replacement, and maintenance costs are low.

Environmental benefits: Although covering stubble is not complete, it is beneficial to prevent water loss in dry land and salt return in saline-alkali land.

3. High work efficiency: The disc plow has the characteristics of not entangling grass, not blocking, and not blocking soil. It can cut off crop stems and overcome masonry fragments in the soil. It has good working quality, easy adjustment, simple and durable.


Technical Parameters

Model1LYQ-220/2221LYQ-320/3221LYQ-420/4221LY(T)-225/2301LY(T)-325/3301LY(T)-425/4301LY(T)-525/5301LY(T)-625/630
Width of cut (mm)400/440600/660800/880500/600750/9001000/12001250/15001500/1800
Depth of cut (mm)20-2220-2220-2225-3025-3025-3025-3025-30
Dia of disc (mm)510/560510/560510/560660/710660/710660/710660/710660/710
Q'ty of disc23423456
Weight (kg)140170230320380450550680
Tractor power (hp)20-3030-5040-6035-5570-8080-120120-150150-200
Mounted catCat I
Cat II


Product Uses

The disc plow is particularly suitable for plowing operations in complex farmland such as heavy mud, dry hard, rocky, rooty, overgrown weeds, and saline-alkali soil. The disc plow can also be used in conjunction with other agricultural machinery to perform joint farming operations. It can be used in conjunction with planters, fertilizer spreaders and other equipment to standardize farming, sowing, fertilizing and other operations and improve agricultural production efficiency. Its unique disc design and powerful operating capabilities perform well in these scenarios.


Product Operate Guide

1. Start the tractor: After ensuring that all connecting parts are firm and reliable and the adjustment work is completed, start the tractor and move forward slowly.

2. Cutting into the soil: As the tractor moves forward, the discs of the disc plow begin to roll and cut into the soil. At this time, you should pay attention to the working status of the disc plow to ensure that it can smoothly cut into the soil and turn over the soil.

3. Maintain speed and direction: During the farming process, the speed and direction of the tractor should be kept stable, and operations such as sudden acceleration, deceleration, or sharp turns should be avoided to avoid affecting the working effect of the disc plow and soil quality.


Product Video



FAQ

 1. Why choose us?

(1) Near 20 years Agricultural Machines Manufacturing Experience.

(2) Competitive price. Attractive design. Best performance. High quality.

(3) Full range products for choice.

(4) High reputation in More Countries.

(5) Experienced Service Team.

(6) Quick and Safe Delivery.

2. Are you tractor supplier or manufacturer?

We are tractor manufacturer. We can provide the complete tractor and spare part steady with competitive price, because we are the source.

3. Do you provide after-sales service?

During warranty period, free spare parts for quality-problem spare parts replacement.

4. Tractor Logo

We have our own logo. And we also can put your logo for free.

5. Tractor Implements

Rotary tiller, disc plow, furrow plow, cultivator, front end Loader, backhoe, Mower, Trailer, Snow Blower or as per your requirements.
