Model | Tavol-1204 | |
Machine parameters | Type | 4×4 |
Rated Traction( KN) | 28 | |
PTO Max Power (KW) | 75 | |
Dimensions(mm) | 4510×2050×3010 | |
Wheelbase(mm) | 2475 | |
Track(mm) | Front wheel(mm) | 1620 |
Rear wheel(mm) | 1850 |
Model | Tavol-2004 | |
Machine parameters | Type | 4×4 |
Rated Traction( KN) | 38 | |
PTO Max Power (KW) | 125 | |
Dimensions(mm) | 5400*2430*3140 | |
Wheelbase(mm) | 2668 | |
Track(mm) | Front wheel(mm) | 1900 |
Rear wheel(mm) | 1700-2300 |
Model | Tavol-504 | |
Machine parameters | Type | 4×4 |
Rated Traction( KN) | 7.5 | |
PTO Max Power (KW) | 31 | |
Dimensions(mm) | 3560×1450×2150 | |
Wheelbase(mm) | 2016 | |
Track(mm) | Front wheel(mm) | 1350-1550 |
Rear wheel(mm) | 1300-1500 |
Model | 1LYQ-220/222 | 1LYQ-320/322 | 1LYQ-420/422 | 1LY(T)-225/230 | 1LY(T)-325/330 | 1LY(T)-425/430 | 1LY(T)-525/530 | 1LY(T)-625/630 |
Width of cut (mm) | 400/440 | 600/660 | 800/880 | 500/600 | 750/900 | 1000/1200 | 1250/1500 | 1500/1800 |
Depth of cut (mm) | 20-22 | 20-22 | 20-22 | 25-30 | 25-30 | 25-30 | 25-30 | 25-30 |
Dia of disc (mm) | 510/560 | 510/560 | 510/560 | 660/710 | 660/710 | 660/710 | 660/710 | 660/710 |
Q’ty of disc | 2 | 3 | 4 | 2 | 3 | 4 | 5 | 6 |
Weight (kg) | 140 | 170 | 230 | 320 | 380 | 450 | 550 | 680 |
Tractor power (hp) | 20-30 | 30-50 | 40-60 | 35-55 | 70-80 | 80-120 | 120-150 | 150-200 |
Mounted cat | I类三点悬挂Cat I | II类三点悬挂Cat II |
2BGYF-2 | 2BGYF-3 | 2BGYF-4 | 2BGYF-5 | 2BGYF-6 | 2BGYF-7 | 前精播------后普播 | 2BYF-2 | 2BYF-3 | 2BYF-4 | 2BYF-5 | 2BYF-6 | 2BYF-7 |
50-100 | ||||||||||||
2 | 3 | 4 | 5 | 6 | 7 | 2 | 3 | 4 | 5 | 6 | 7 | |
500-620 | ||||||||||||
120-320 | ||||||||||||
20-40 | 30-50 | 40-70 | 40-80 | 40-90 | 50-120 | 20-40 | 30-50 | 40-70 | 40-80 | 40-90 | 50-120 | |
180 | 210 | 275 | 340 | 410 | 125 | 155 | 195 | 240 | 290 | |||
三点悬挂Cat | 三点悬挂Cat |
Front end loader | ||||||||
Model | TZ03D | TZ04D | TZ05D | TZ06D | TZ08D | TZ10D | TZ12D | |
Rated lift capacity | kg | 300 | 400 | 500 | 600 | 800 | 1000 | 1200 |
Max. dump height | mm | 1800 | 2000 | 2100 | 2200 | 2350 | 2350 | 2500 |
Digging depth | mm | 100 | 120 | 140 | 140 | 180 | 180 | 200 |
Bucket capacity | m³ | 0.18 | 0.3 | 0.35 | 0.4 | 0.48 | 0.6 | 1 |
Dump angle | (°) | 42-45 | 42-45 | 42-45 | 42-45 | 42-45 | 42-45 | 42-45 |
Weight | kg | 400 | 450 | 500 | 550 | 600 | 700 | 800 |
Backhoe | |||||
Model | LW-6 | LW-7 | LW-8 | LW-12 | |
Max. digging depth | mm | 1700 | 2100 | 2600 | 3600 |
Max. unloading height | mm | 1700 | 2300 | 2500 | 3200 |
Max. digging height | mm | 2700 | 3300 | 3400 | 4500 |
Max. digging depth flat bottom | mm | 1600 | 2000 | 2500 | 3500 |
Max. swing angle | (°) | 180 | 180 | 180 | 180 |
Bucket rotation angle | (°) | 160 | 160 | 160 | 174 |
Bucket capacity | m³ | 0.03 | 0.048 | 0.06 | 0.2 |
Weight | kg | 450 | 500 | 540 | 1050 |

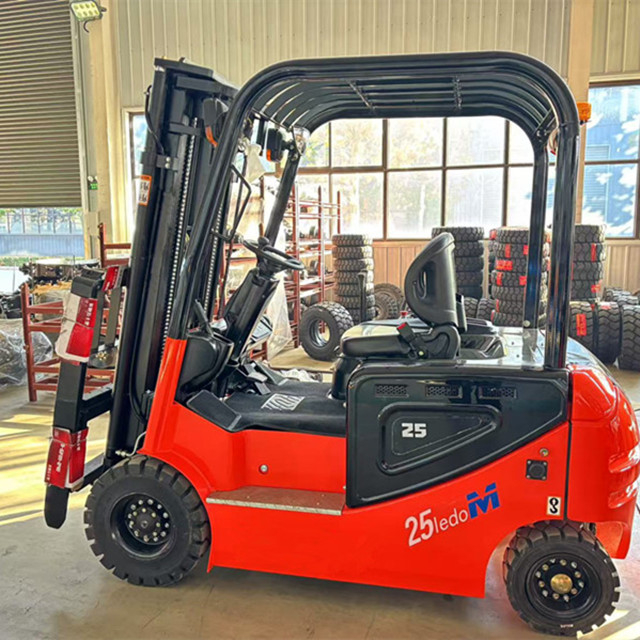

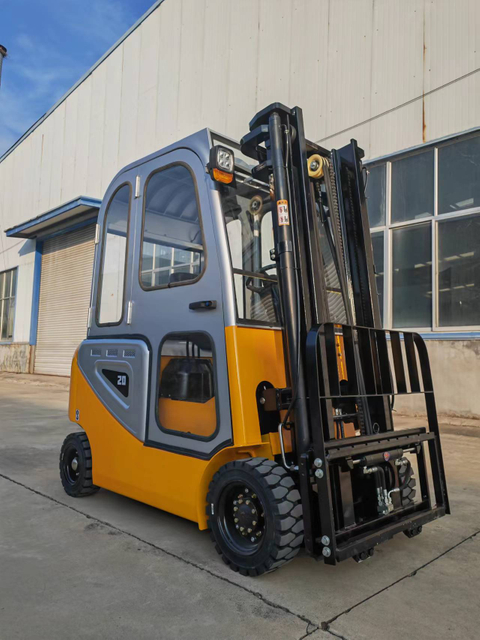

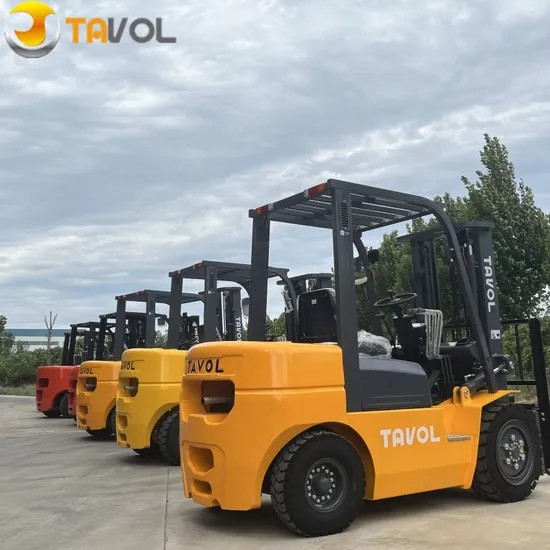

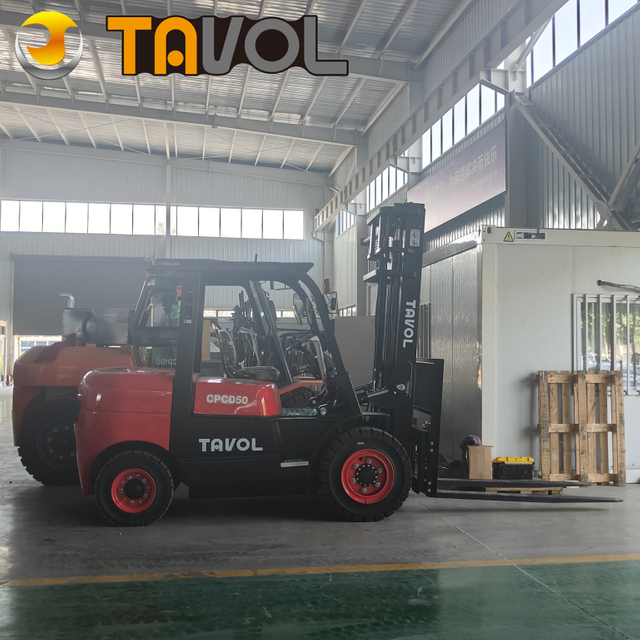

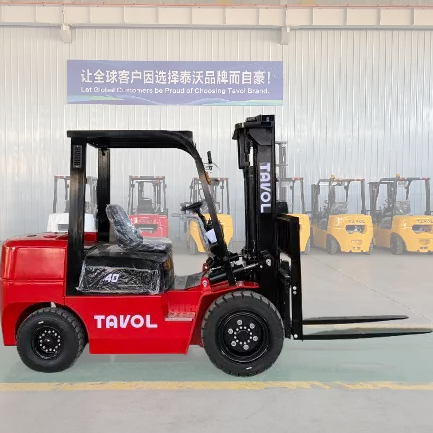

Tavol Forklift offers a variety of forklift products to meet the needs of different customers. Its product types include diesel forklifts, electric forklifts and LPG dual-fuel forklifts, covering different tonnages from light to heavy, such as 3 tons, 10 tons, etc., as well as forklifts of different heights, such as 4.5-meter electric forklifts. This rich product line enables Tavol Forklift to provide customers with more comprehensive solutions.
During the production and manufacturing process, Tavol Forklift focuses on product performance and quality. Tavol forklift products are efficient and flexible, and can quickly complete tasks such as handling, loading and unloading to meet various logistics needs. At the same time, Tavol forklifts have strong engine power, high reliability, low fuel, low emissions, and easy to start at low temperatures, ensuring the stable operation of forklifts in various environments.
Tavol Group adheres to the concept of "convenience for global customers and serving the people of the world" and is committed to providing customers with high-quality products and better services. From forklift sales, repairs to maintenance, Tavol Forklift provides a full range of service support. Its professional after-sales service team can respond quickly to customer needs, ensure the normal operation of forklifts, and reduce customers' operating costs.
Tavol Forklift focuses on product innovation and R&D, and continuously launches more efficient and environmentally friendly forklift products. By adopting advanced technologies and processes, Tavol Forklift not only improves product performance, but also pays attention to the environmental performance of products, and is committed to providing customers with greener and smarter logistics solutions.
Tavol Forklift has won the trust and praise of customers for its superior product performance, rich product line, high-quality and efficient service, and focus on innovation and R&D.
