CPQYD
Tavol
The 3.5-ton LPG forklift, as an industrial handling equipment integrating high efficiency, environmental protection, energy saving and stable load capacity, is specially designed to meet the needs of medium and heavy material handling. It uses liquefied petroleum gas (LPG) as its power source. Compared with traditional fuel forklifts, it has lower emissions and higher energy efficiency. It is an indispensable tool in the field of modern logistics and warehousing.
1. Environmental protection and energy saving: LPG, as a clean energy, has lower emissions and higher combustion efficiency than diesel, which helps reduce environmental pollution and reduce operating costs.
2. Low noise: LPG engine has low noise during operation, providing operators with a more comfortable working environment.
3. Efficient and stable: The advanced hydraulic system and transmission system are adopted to ensure the efficiency and stability of the forklift during handling and stacking.
4. Safe and reliable: Equipped with multiple safety protection devices, such as emergency braking system, fork limiter, etc., to ensure safety during operation.
5. Easy maintenance: The structural design is reasonable, easy to maintain and maintain, and reduces maintenance costs and time.
Model | CPQYD35H | |||||
Rated capacity | KG | 3500 | ||||
Load center | MM | 500 | ||||
Lifting height(max.) | MM | 3000 | ||||
Free lift height | MM | 80 | ||||
Mast Tilt Angle | F/R | Deg | 6°/12° | |||
Lifting speed (max.) | Loaded | MM/s | 470/420 | |||
Traction(max) | Loaded/Unloaded | KN | 15/10 | |||
Traveling speed(max.) | KM/h | 18/20 | ||||
Grade ability under full Load(max) | Loaded/Unloaded | % | 15/20 | |||
Turning radius(min) | MM | 2540 | ||||
The minimum clearance from the ground | MM | 135 | ||||
Wheelbase | MM | 1775 | ||||
Wheel tread | F/R | MM | 1000/970 | |||
front overhang | MM | 465 | ||||
Dimensions | Length | With fork | MM | 4025 | ||
Width | MM | 1230 | ||||
Closed mast height | MM | 2110 | ||||
Overhead guard height | MM | 2105 | ||||
Max. Height at work | With/without backrest | MM | 4270 | |||
Fork size | LXWXT | MM | 1220x122x45 | |||
Standard fork length | MM | 1220 | ||||
Service Weight | KG | 4600/4640 | ||||
Tire | 2 units | Inflatable Tyre | ||||
2 units | Inflatable Tyre | |||||

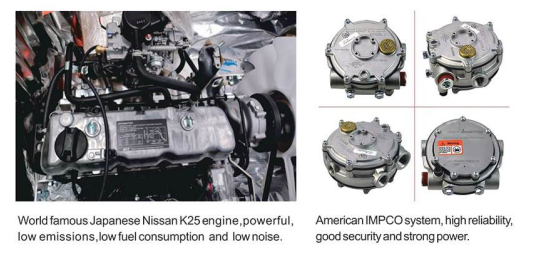

Motor | Brand | Nissan K25 | ||||
Maximum output power(Kw) | 37.4 | |||||
Rated speed(rpm) | 2300 | |||||
Max. Torque (Nm) | 177 | |||||
Maximum torque speed(rpm) | 1600 | |||||
The engine form | Hydraulic | |||||
1.Factory workshops: handling raw materials, semi-finished products and finished products in production lines and workshops.
2. Distribution centers and distribution centers: rapid sorting, handling and distribution of goods.
3. Logistics warehousing: used for handling, stacking and sorting of goods in warehouses.
4. Port terminals: loading and unloading of containers and bulk cargo at ports and terminals.
Fork operation:
1. When picking up goods with forks, ensure that the goods are stable and balanced to avoid slipping or tilting.
2. When raising and lowering the forks, operate smoothly to avoid sudden acceleration or deceleration that may cause the goods to shake.
3. When transporting goods, keep the forklift running smoothly to avoid sudden braking or sharp turns that may cause the goods to fall.
1、How can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment;
2、Why should you buy from us not from other suppliers?
We have an Excellent R&D Team,All Designers have a Bachelor degree or Above in Mechanical Majors and More than 10 Years of Working
Experience in the Construction machinery industry.
3、Where is your main market?
Southeast Asia, South America, Africa, Europe and all of China.
4、How about your delivery time?
Usually 25 days. In peak season,30-40 days
5、Are you factory or trading company?
We are factory, located in Tai'an City, Shandong Province, China.
