CPQYD
Tavol

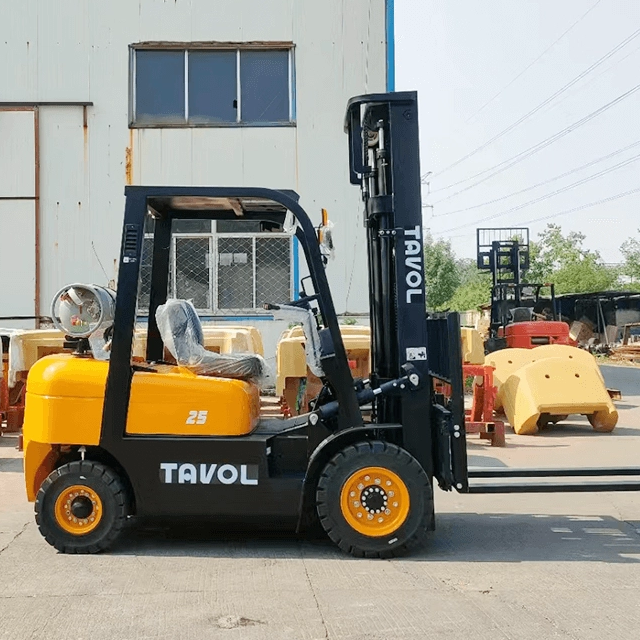

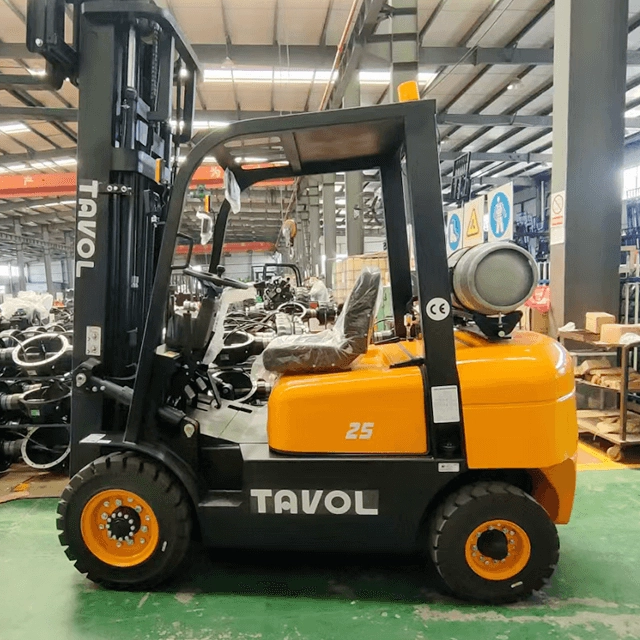

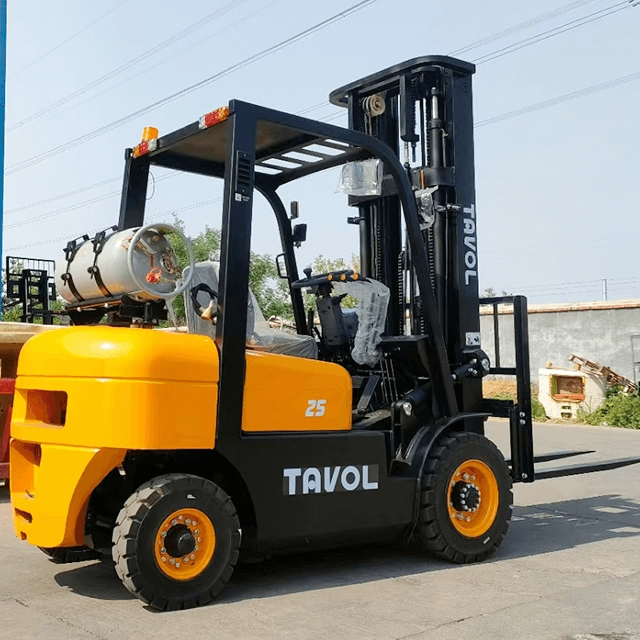

The 2.5 ton dual fuel forklift is a forklift that combines traditional fuels (such as diesel) and clean energy (such as LPG, LPG or natural gas, CNG) to provide efficient and environmentally friendly material handling solutions. With its compact design and strong load capacity, the forklift truck is suitable for a variety of industrial and commercial environments, such as warehouses, factories, docks, etc.
Product Advantages:
1. Environmental protection and energy saving, dual-fuel system to reduce emission costs;
2. Cost-effective and adaptable to changing working conditions;
3. Strong bearing capacity and flexible operation;
4. Humanized design to improve operation comfort and safety.
Technical parameters
| 2.5 ton LPG forklift specifications | |||||
| type | CPQYD25H | ||||
| Rated capacity | kg | 2500 | |||
| Load center | millimetre | 500 | |||
| Lifting height (max) | millimetre | 3000 | |||
| Lift the height freely | millimetre | 60 | |||
| Mast tilt angle | F/R | degree | 6°/12° | ||
| Lifting speed (max) | load | mm/s | 400 | ||
| Traction (max) | Loaded/uninstalled | KN (English) | 15/10 | ||
| Travel speed (max) | Loaded/uninstalled | km/h | 17/19 | ||
| Grading ability below full score | Loaded/uninstalled | % | 15/20 | ||
| Load (max) | |||||
| Turning radius (minimum) | millimetre | 2450 | |||
| Minimum clearance from the ground | millimetre | 110 | |||
| Ground to upper frame height | millimetre | 2050 | |||
| wheelbase | millimetre | 1640 | |||
| Car tread covers | F/R | millimetre | 970/970 | ||
| Front overhang | millimetre | 451 | |||
| size | length | With forks | millimetre | 3605 | |
| width | millimetre | 1160 | |||
| Enclosed mast height | millimetre | 2095 | |||
| Overhead guard height | millimetre | 2095 | |||
| Maximum working height | with/without backrest | millimetre | 4080 | ||
| Fork size | LXWXT | millimetre | 1220x122x40 | ||
| Standard fork length | millimetre | 1070 | |||
| dead weight | kg | 3600 | |||
| tired | 2 units | Pneumatic tires | |||
| 2 units | Pneumatic tires | ||||
| motor | brand | Guangqing/Nissan K25 engine | |||
Product Use:
1. Warehousing and logistics: In large warehouses, logistics centers and other places, 2.5-ton dual-fuel forklifts are used to transport and stack various goods to improve the efficiency of warehousing and logistics. These sites often handle large volumes of cargo and require high load-carrying capacity and flexibility of forklifts.
2. Manufacturing: On the manufacturing production line, forklifts are used to transport raw materials, semi-finished products and finished products. The 2.5-ton dual-fuel forklift can meet these needs, and its dual-fuel system helps reduce operating costs.
3. Agricultural mines: transportation of agricultural products or processing raw materials on farms; Transporting heavy loads, such as ores, in mines. The 2.5 ton dual fuel forklift truck is suitable for these environments because of its load capacity and durability.
4. Construction site: On construction sites, forklifts can be used to transport heavy objects such as building materials and equipment. Dual-fuel systems help reduce emissions and environmental impact.
Product Operation Guide
A. Driving Operations
1. Start: Before starting, observe the surrounding environment, confirm that there are no obstacles that hinder driving safety, and then blow the whistle and then start. When starting, you must gently press the throttle and start slowly and steadily.
2. Driving: When driving, the bottom of the fork should be kept at an appropriate distance from the ground (such as 300~400mm), and the mast should be tilted backward to prevent the fork from rising too high and affecting the stability. Slow down when turning to avoid sharp turns at high speeds, which may cause the vehicle to lose its balance.
3. Loading and unloading: When loading and unloading items, the distance between the two forks should be adjusted as needed to balance the load on the two forks. During the loading and unloading process, the forklift must be braked to ensure the smooth lifting of the goods.
B. Stopping and shutting down the engine
1. Parking location: Choose a flat and stable ground as a parking location, and avoid parking on slopes or soft ground.
2. Put down the fork: After parking, the fork should be lowered to the lowest position to avoid damage to people or objects.
3. Tighten the handbrake: tighten the handbrake after parking to prevent the forklift.
4. Flame-off: Turn off the engine, cut off the power supply, and ensure that the forklift is in a safe state.
frequently asked questions
1. Who are we?
We are based in Shandong, China, start from 2012,sell to South America(30.00%),Southeast Asia(15.00%),Africa(10.00%),South Asia(9.00%),Domestic Market(5.00%),Eastern Asia(5.00%),Mid East(5.00%),North America(5.00%),Northern Europe(5.00%),Central America(3.00%),Western Europe(2.00%),Southern Europe(2.00%),Eastern Europe(2.00%), Oceania (2.00%). In total, we have about 51-100 people in our office.
2. How can we guarantee the quality?
Before mass production, it is always a pre-production sample;
Always do a final inspection before shipment.
3. What can you buy from us?
Wheel loaders, backhoe loaders, rough all-terrain forklifts, etc.
4. why should you buy from us not from other suppliers?
We have an excellent R&D team, all designers have a bachelor's degree or above in mechanical engineering, and have more than 10 years of work experience in the construction machinery industry.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FCA, CPT, DDU, Express;
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, Switzerland Franc;
Accepted Payment Methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow;
Languages: English, Chinese.
