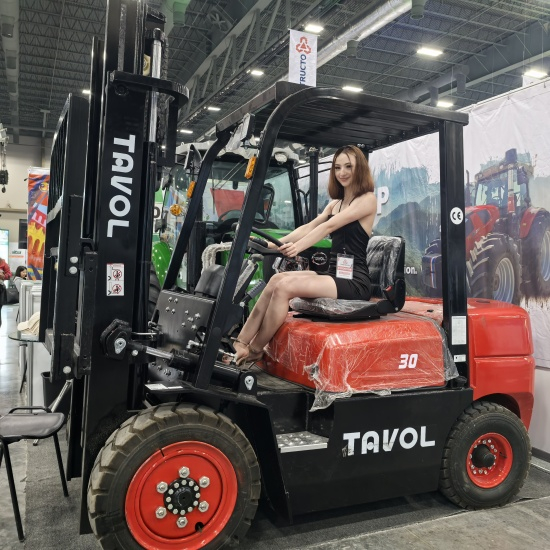

CPCD30 Diesel Forklift Truck 3T

The 3-ton diesel forklift has strong power and stable load capacity. It is designed for small and medium-sized warehouses and light industries. It is flexible and efficient and can meet daily material handling needs.
Color:
Weight:
Fork Size:
Availability:
Quantity:
  • CPCD

  • Tavol

Tavol forklift adopts the streamline design that makes the appearance more pleasing,using domestic well-known engine brand which is powerful, dependable, easy to service ,and with low emissions and fuel consumption. Our forklift can reduce your cost,provide greater productivity and profitability for you.

Diesel Forklift Truck 3T Advantage

1. Powerful power: Equipped with a high-efficiency diesel engine to provide strong power output to meet the needs of long-term, high-intensity operations.

2. Stable and reliable: The use of high-quality materials and precision manufacturing processes ensures that the forklift can still operate stably in harsh environments and reduces the failure rate.

3. Flexible control: Equipped with advanced control system and humanized design, the operation is easier and more flexible, and the operation efficiency is improved.

4. High load capacity: The rated load capacity reaches three tons, which can easily cope with various heavy object handling tasks and meet the diverse needs of users.

5. Safety performance: Integrate multiple safety protection devices, such as emergency braking system, reversing buzzer, etc., to ensure the safety of personnel and equipment during operation.

Technical Parameters

Model CPC30/ CPCD30
Rated Loading Capacity (kg) 3200
Load Center Distance (mm) 500
Max Lifting Speed (Full load) (mm/h) 475
Max Driving Speed (Empty/Full load) (km/h) 18/20
Fork Lifting Height (mm) 3000
Mast Tilt Angle (Forward and Backward) 6°/12°
Min. Turning Radius (mm) 2530
Min. Ground Clearance (mm) 135
Length (Including Fork) (mm) 3970
Width (mm) 1230
Height From Ground to Overhead Guard (mm) 2105
Front Overhang (mm) 465
Wheel Base (mm) 1775
Front Wheel Track (mm) 1000
Rear Wheel Track (mm) 970
Front Wheel Tyre 28*9-15
Rear Wheel Tyre 6.50-10
Self Weight (kg) 4250/4290
Standard Fork Length (mm) 1220
Engine Rated Power (kw) 36.8
Engine Speed At Rated Power (rmp) 2500
Engine Maximum Torque (Nm) 165
Engine Speed At Maximum Torque (rpm) 1600-1800
Variable speed form Mechanical/ Hydraulic

Diesel Forklift Truck 3T Uses

1. Warehouse management:

The Tavol three-ton diesel forklift's powerful carrying capacity and flexible maneuverability can significantly improve the storage density and operating efficiency of the warehouse.

2. Terminal loading and unloading:

In logistics hubs such as terminals, Tavol three-ton diesel forklifts can be used for loading and unloading of containers and bulk cargo. It can quickly and accurately unload goods from ships and move them to designated areas, or load goods onto ships to ensure smooth logistics.

3. Factory production line:

In factory production lines, Tavol three-ton diesel forklifts are usually used for handling raw materials, transferring semi-finished products, and warehousing finished products. It can quickly respond to production needs and ensure continuous operation and efficient output of the production line.

4. Logistics center:

In the logistics center, Tavol three-ton diesel forklifts can be used for sorting, handling and distribution of goods. Its stable performance and efficient operating capabilities can significantly improve the processing capacity and distribution efficiency of the logistics center.

5. Other scenarios:

In addition, Tavol three-ton diesel forklifts can also be used in construction sites, airport cargo areas and other scenarios to meet various heavy-duty handling needs.

Diesel Forklift Truck 3T Operate Guide

1. During driving, keep the vehicle speed steady and avoid sudden acceleration, sudden braking, and sharp turns.

2. When lifting or carrying goods, make sure the weight and size of the goods are within the carrying capacity of the forklift, and pay attention to the stability and balance of the goods.

3. When driving in narrow spaces or areas with poor visibility, be especially careful to prevent collisions with walls, shelves and other obstacles.

4. It is prohibited to use forklifts in flammable and explosive environments to avoid accidents such as fire or explosion.

We produce:

2ton to 10ton diesel forklift;

1ton to 3.5ton electric forklift;

2ton to 4ton duel fuel (gas and gasoline) forklift.

Lifting height from 3m to 6m.


Optional:

1.Engine: Standard China Xinchai engine,optional Japan Isuzu, Yanmar and Mitsubishi engine and others.
2.Transmission: Mechanical and Automatic transmission can be choosen.
3.Mast: Standard 2-stages 3000mm mast, optional 3-stages 4500mm -6000mm mast and others.
4.Fork: Standard 1220mm fork, optional 1370mm, 1520mm, 1670mm and 1820mm forks.
5.Attachment: Side shifter, fork positioner, 360 degree rotator,bale clamp, paper roll clamp and other attachments are supported.
6.Tires: Standard pneumatic tire, optional solid tire.

FAQ

1.How long is the warranty of your products?

Normally 1 year or 2000 working hours whichever occurs first. Details to see the Tavolwarranty policy for each model.

2. Do you have quality control system?

Yes, we have ISO, CE and our own quality control team. And we will do a lot of different tests to make sure it works fine.

3.How do you keep long-term business and good relationship?

(1)We keep supplying good quality products and competitive prices to ensure our customers' benefit.

(2)We think highly of every single customer of us and value the relationship, we take it not only as business partner, but also as true friends. Will keep the good services and put customers' benefit as high priority.

(3)My job is to help customers buy the highest quality machinery at the best price.

(4)Our goal is to help customers save money and help customers make money.

4.Can you customize and design as the clients' requirement?

Tavol will try its best to meet all kinds of clients' special requirements.

However, All the customizing and refit should be implemented safely and scientifically.

The colors can be painted as client's need.

Side Shift


Side Shift And Fork Adjustment



Japanese Isuzu C240 Engine


Chinese Xinchai Brand Engine


YQX-Automatic Transmission


Japanese Mitsubishi Engine


2 Stages Full Free Mast


3 Stages Full Free Mast

2 Stages Mast


Standard Xinchai Brand Diesel Engine

In-line 4-cylinder water-cooled, 4-stroke, electronically controlled VP pump, rated power 36.8Kw, maximum torque 165Nm, emissions meet the requirements of China's fourth-stage emission standards;

Strong power, high reliability, to meet the use of high-load conditions; The whole machine has high reliability and stable

quality, ensuring a long service life.

Famouse ZhongChai Brand Hydraulic Transmission

The first domestic brand, is selected. The transmission of the hydraulic transmission gearbox is more stable, the shifting is lighter and more flexible, and the driving is light and comfortable,work intensity.



Product Configuration


Anti-Fatigue Seat

New suspension adjustable seat, More comfortable when working


Hydraulic Steering

Make the steering smoother and quicker to ensure the safety of the driver


Compound Chain

Strong pull and easy lifting, thinckingto prevent safety accidents


Famous Brand Engine

powerful, dependable, easy toservice, and with low emissions andfuel consumption


Safe Overhead Guard

Protect the driver


Wear-resistant Tire

Adapt different roads and working environment


LED lights

Save electricity and have a longer service life


Electric switch

Easy to turn lights on and off


Dashboard

Get a clear view of your driving data
