Model | Tavol-1204 | |
Machine parameters | Type | 4×4 |
Rated Traction( KN) | 28 | |
PTO Max Power (KW) | 75 | |
Dimensions(mm) | 4510×2050×3010 | |
Wheelbase(mm) | 2475 | |
Track(mm) | Front wheel(mm) | 1620 |
Rear wheel(mm) | 1850 |
Model | Tavol-2004 | |
Machine parameters | Type | 4×4 |
Rated Traction( KN) | 38 | |
PTO Max Power (KW) | 125 | |
Dimensions(mm) | 5400*2430*3140 | |
Wheelbase(mm) | 2668 | |
Track(mm) | Front wheel(mm) | 1900 |
Rear wheel(mm) | 1700-2300 |
Model | Tavol-504 | |
Machine parameters | Type | 4×4 |
Rated Traction( KN) | 7.5 | |
PTO Max Power (KW) | 31 | |
Dimensions(mm) | 3560×1450×2150 | |
Wheelbase(mm) | 2016 | |
Track(mm) | Front wheel(mm) | 1350-1550 |
Rear wheel(mm) | 1300-1500 |
Model | 1LYQ-220/222 | 1LYQ-320/322 | 1LYQ-420/422 | 1LY(T)-225/230 | 1LY(T)-325/330 | 1LY(T)-425/430 | 1LY(T)-525/530 | 1LY(T)-625/630 |
Width of cut (mm) | 400/440 | 600/660 | 800/880 | 500/600 | 750/900 | 1000/1200 | 1250/1500 | 1500/1800 |
Depth of cut (mm) | 20-22 | 20-22 | 20-22 | 25-30 | 25-30 | 25-30 | 25-30 | 25-30 |
Dia of disc (mm) | 510/560 | 510/560 | 510/560 | 660/710 | 660/710 | 660/710 | 660/710 | 660/710 |
Q’ty of disc | 2 | 3 | 4 | 2 | 3 | 4 | 5 | 6 |
Weight (kg) | 140 | 170 | 230 | 320 | 380 | 450 | 550 | 680 |
Tractor power (hp) | 20-30 | 30-50 | 40-60 | 35-55 | 70-80 | 80-120 | 120-150 | 150-200 |
Mounted cat | I类三点悬挂Cat I | II类三点悬挂Cat II |
2BGYF-2 | 2BGYF-3 | 2BGYF-4 | 2BGYF-5 | 2BGYF-6 | 2BGYF-7 | 前精播------后普播 | 2BYF-2 | 2BYF-3 | 2BYF-4 | 2BYF-5 | 2BYF-6 | 2BYF-7 |
50-100 | ||||||||||||
2 | 3 | 4 | 5 | 6 | 7 | 2 | 3 | 4 | 5 | 6 | 7 | |
500-620 | ||||||||||||
120-320 | ||||||||||||
20-40 | 30-50 | 40-70 | 40-80 | 40-90 | 50-120 | 20-40 | 30-50 | 40-70 | 40-80 | 40-90 | 50-120 | |
180 | 210 | 275 | 340 | 410 | 125 | 155 | 195 | 240 | 290 | |||
三点悬挂Cat | 三点悬挂Cat |
Front end loader | ||||||||
Model | TZ03D | TZ04D | TZ05D | TZ06D | TZ08D | TZ10D | TZ12D | |
Rated lift capacity | kg | 300 | 400 | 500 | 600 | 800 | 1000 | 1200 |
Max. dump height | mm | 1800 | 2000 | 2100 | 2200 | 2350 | 2350 | 2500 |
Digging depth | mm | 100 | 120 | 140 | 140 | 180 | 180 | 200 |
Bucket capacity | m³ | 0.18 | 0.3 | 0.35 | 0.4 | 0.48 | 0.6 | 1 |
Dump angle | (°) | 42-45 | 42-45 | 42-45 | 42-45 | 42-45 | 42-45 | 42-45 |
Weight | kg | 400 | 450 | 500 | 550 | 600 | 700 | 800 |
Backhoe | |||||
Model | LW-6 | LW-7 | LW-8 | LW-12 | |
Max. digging depth | mm | 1700 | 2100 | 2600 | 3600 |
Max. unloading height | mm | 1700 | 2300 | 2500 | 3200 |
Max. digging height | mm | 2700 | 3300 | 3400 | 4500 |
Max. digging depth flat bottom | mm | 1600 | 2000 | 2500 | 3500 |
Max. swing angle | (°) | 180 | 180 | 180 | 180 |
Bucket rotation angle | (°) | 160 | 160 | 160 | 174 |
Bucket capacity | m³ | 0.03 | 0.048 | 0.06 | 0.2 |
Weight | kg | 450 | 500 | 540 | 1050 |

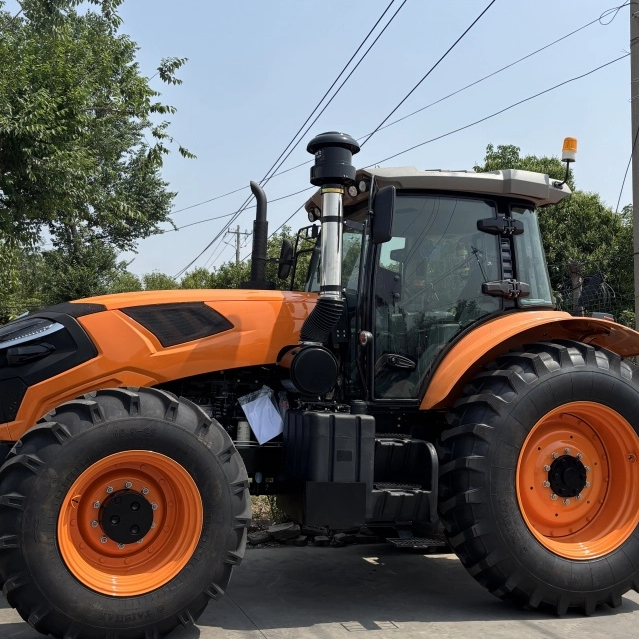

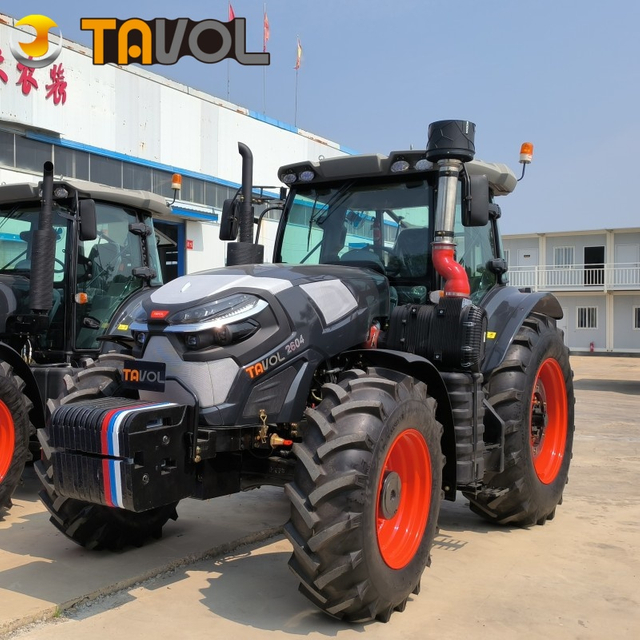

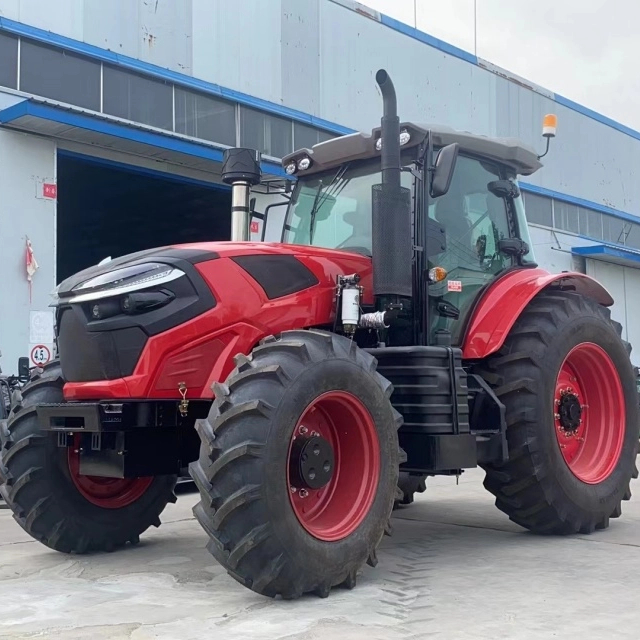

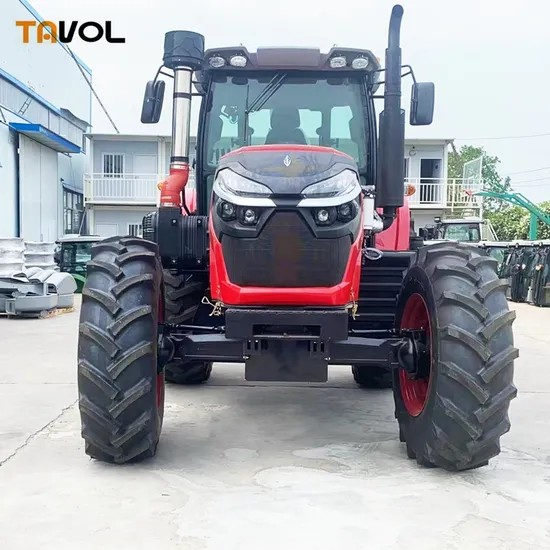

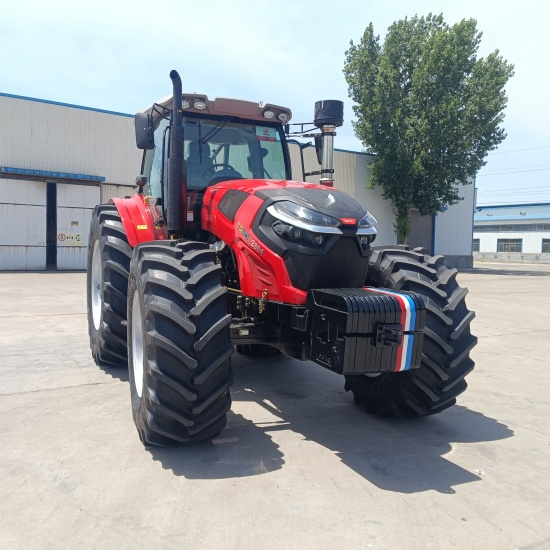

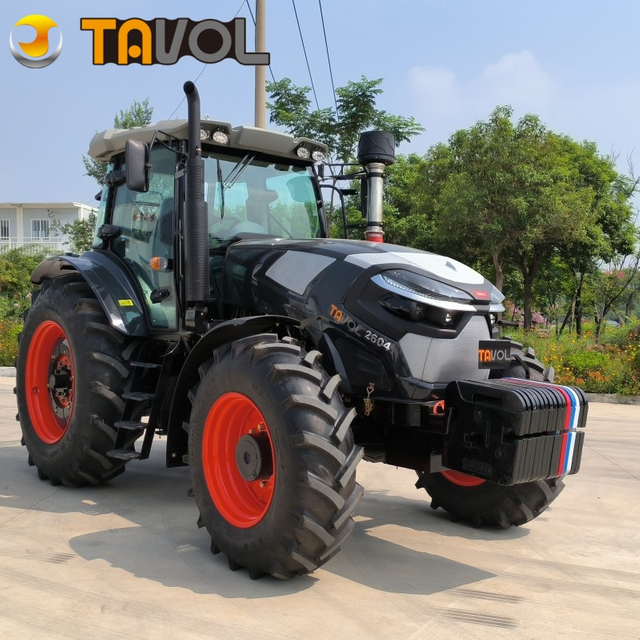

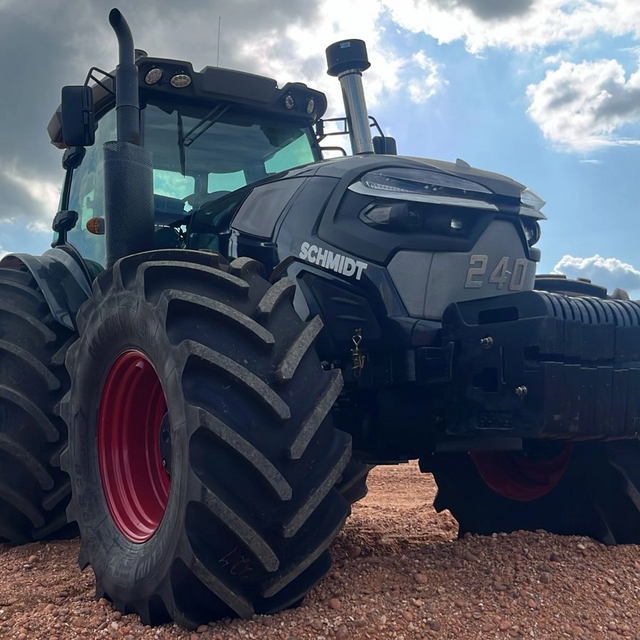

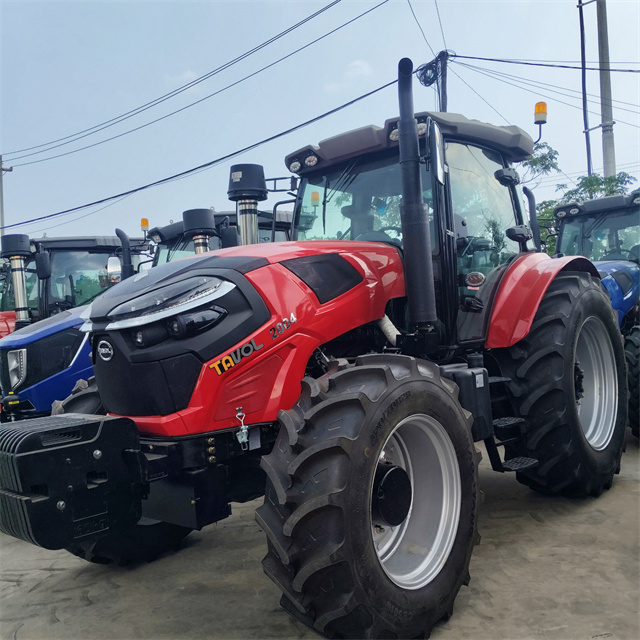

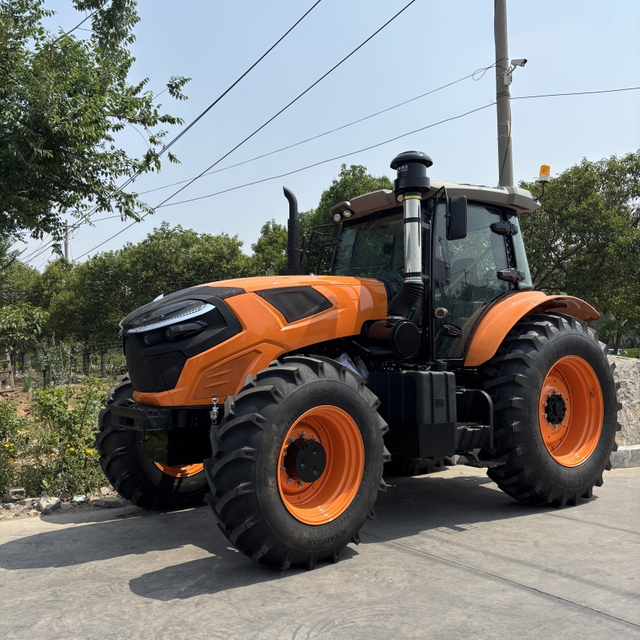

Our 210hp-280hp tractors are built for heavy-duty agricultural tasks, providing high power and robust performance that meet the demands of large-scale farming. These tractors are designed with advanced engines, improved fuel efficiency, and hydraulic systems that ensure maximum productivity and control.
Ideal for plowing, soil preparation, and other intensive tasks, our 210hp-280hp tractors combine reliability with top-tier technology. This model range is also designed with operator comfort in mind, featuring ergonomic seats and controls.
Contact us to learn more about our powerful 210hp-280hp tractors and how they can benefit your operations.
