Model | Tavol-1204 | |
Machine parameters | Type | 4×4 |
Rated Traction( KN) | 28 | |
PTO Max Power (KW) | 75 | |
Dimensions(mm) | 4510×2050×3010 | |
Wheelbase(mm) | 2475 | |
Track(mm) | Front wheel(mm) | 1620 |
Rear wheel(mm) | 1850 |
Model | Tavol-2004 | |
Machine parameters | Type | 4×4 |
Rated Traction( KN) | 38 | |
PTO Max Power (KW) | 125 | |
Dimensions(mm) | 5400*2430*3140 | |
Wheelbase(mm) | 2668 | |
Track(mm) | Front wheel(mm) | 1900 |
Rear wheel(mm) | 1700-2300 |

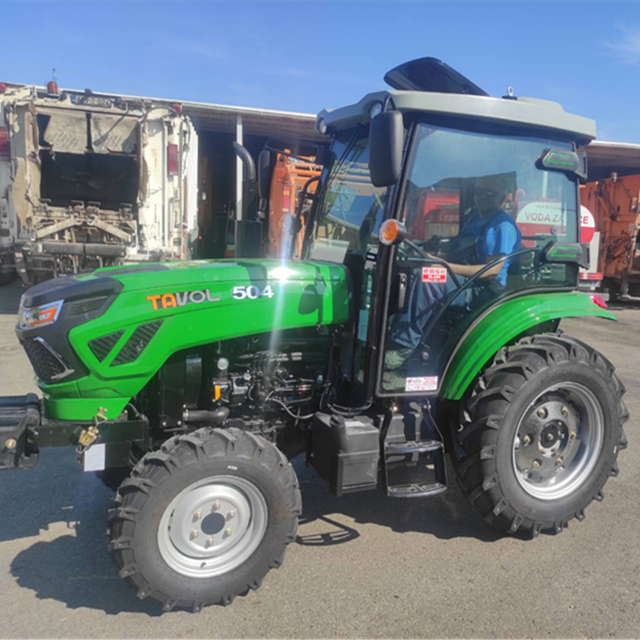

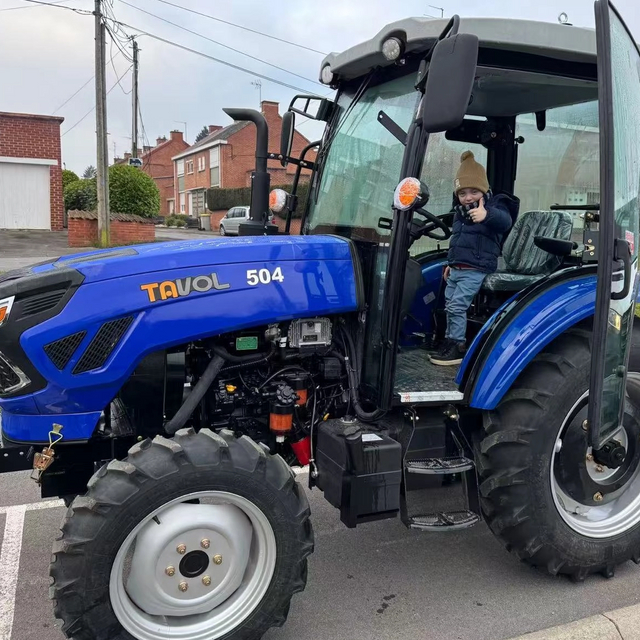

Model | Tavol-504 | |
Machine parameters | Type | 4×4 |
Rated Traction( KN) | 7.5 | |
PTO Max Power (KW) | 31 | |
Dimensions(mm) | 3560×1450×2150 | |
Wheelbase(mm) | 2016 | |
Track(mm) | Front wheel(mm) | 1350-1550 |
Rear wheel(mm) | 1300-1500 |
Model | 1LYQ-220/222 | 1LYQ-320/322 | 1LYQ-420/422 | 1LY(T)-225/230 | 1LY(T)-325/330 | 1LY(T)-425/430 | 1LY(T)-525/530 | 1LY(T)-625/630 |
Width of cut (mm) | 400/440 | 600/660 | 800/880 | 500/600 | 750/900 | 1000/1200 | 1250/1500 | 1500/1800 |
Depth of cut (mm) | 20-22 | 20-22 | 20-22 | 25-30 | 25-30 | 25-30 | 25-30 | 25-30 |
Dia of disc (mm) | 510/560 | 510/560 | 510/560 | 660/710 | 660/710 | 660/710 | 660/710 | 660/710 |
Q’ty of disc | 2 | 3 | 4 | 2 | 3 | 4 | 5 | 6 |
Weight (kg) | 140 | 170 | 230 | 320 | 380 | 450 | 550 | 680 |
Tractor power (hp) | 20-30 | 30-50 | 40-60 | 35-55 | 70-80 | 80-120 | 120-150 | 150-200 |
Mounted cat | I类三点悬挂Cat I | II类三点悬挂Cat II |
2BGYF-2 | 2BGYF-3 | 2BGYF-4 | 2BGYF-5 | 2BGYF-6 | 2BGYF-7 | 前精播------后普播 | 2BYF-2 | 2BYF-3 | 2BYF-4 | 2BYF-5 | 2BYF-6 | 2BYF-7 |
50-100 | ||||||||||||
2 | 3 | 4 | 5 | 6 | 7 | 2 | 3 | 4 | 5 | 6 | 7 | |
500-620 | ||||||||||||
120-320 | ||||||||||||
20-40 | 30-50 | 40-70 | 40-80 | 40-90 | 50-120 | 20-40 | 30-50 | 40-70 | 40-80 | 40-90 | 50-120 | |
180 | 210 | 275 | 340 | 410 | 125 | 155 | 195 | 240 | 290 | |||
三点悬挂Cat | 三点悬挂Cat |
Front end loader | ||||||||

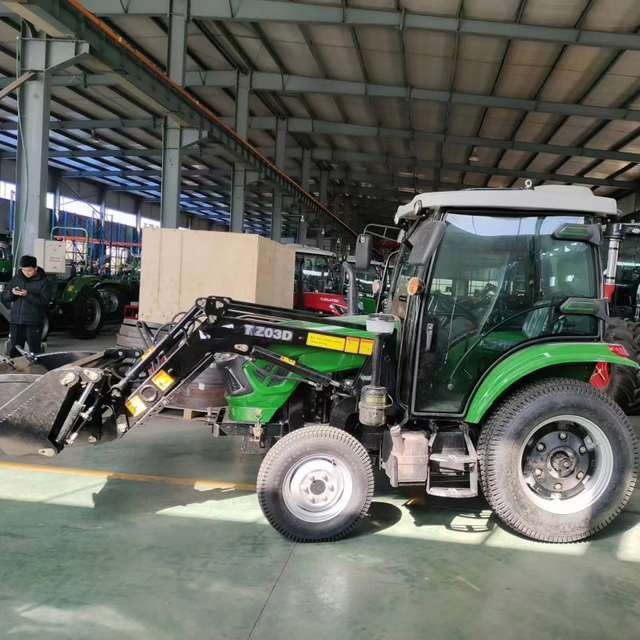

Model | TZ03D | TZ04D | TZ05D | TZ06D | TZ08D | TZ10D | TZ12D | |
Rated lift capacity | kg | 300 | 400 | 500 | 600 | 800 | 1000 | 1200 |
Max. dump height | mm | 1800 | 2000 | 2100 | 2200 | 2350 | 2350 | 2500 |
Digging depth | mm | 100 | 120 | 140 | 140 | 180 | 180 | 200 |
Bucket capacity | m³ | 0.18 | 0.3 | 0.35 | 0.4 | 0.48 | 0.6 | 1 |
Dump angle | (°) | 42-45 | 42-45 | 42-45 | 42-45 | 42-45 | 42-45 | 42-45 |
Weight | kg | 400 | 450 | 500 | 550 | 600 | 700 | 800 |
Backhoe | |||||
Model | LW-6 | LW-7 | LW-8 | LW-12 | |
Max. digging depth | mm | 1700 | 2100 | 2600 | 3600 |
Max. unloading height | mm | 1700 | 2300 | 2500 | 3200 |
Max. digging height | mm | 2700 | 3300 | 3400 | 4500 |
Max. digging depth flat bottom | mm | 1600 | 2000 | 2500 | 3500 |
Max. swing angle | (°) | 180 | 180 | 180 | 180 |
Bucket rotation angle | (°) | 160 | 160 | 160 | 174 |
Bucket capacity | m³ | 0.03 | 0.048 | 0.06 | 0.2 |
Weight | kg | 450 | 500 | 540 | 1050 |
The Tavol tractor employs advanced engine technology to achieve high efficiency and energy-saving operational results. This efficient power system not only reduces fuel consumption but also enhances the tractor's overall performance. Additionally, its engine boasts robust power output, capable of effortlessly tackling various complex agricultural tasks, ensuring efficient agricultural production.
Tavol tractors focus on flexibility and versatility, covering a power range from 25hp to 280HP, designed to adapt effortlessly to different agricultural environments. They can be equipped with a multitude of accessories and tools for tasks such as tilling, planting, transplanting rice seedlings, and harvesting, thereby meeting the diverse needs of agricultural production. This versatility makes Tavol tractors invaluable assistants in agricultural production, significantly boosting agricultural efficiency.
Constructed with high-quality materials and advanced manufacturing techniques, Tavol tractors exhibit stable and reliable performance with a long service life. This stability and reliability ensure that the tractor maintains exceptional performance even during long, high-intensity operations. Furthermore, its durability reduces maintenance and replacement costs for users, enhancing overall economic benefits.
Tavol tractors are designed for easy operation and comfortable driving, featuring excellent maneuverability and stability. Their user-friendly design allows users to quickly get the hang of operating them, even inexperienced novices can master the skills within a short period. Additionally, the comfortable driving environment alleviates driver fatigue, improving operational efficiency.
Tavol tractor manufacturers typically provide comprehensive pre-sale consultation and after-sales service. This thoughtful service not only offers users more options and support but also ensures that users receive timely and effective assistance and solutions during the purchase and use process. This superior service and after-sales support further enhance the market competitiveness of Tavol tractors.
