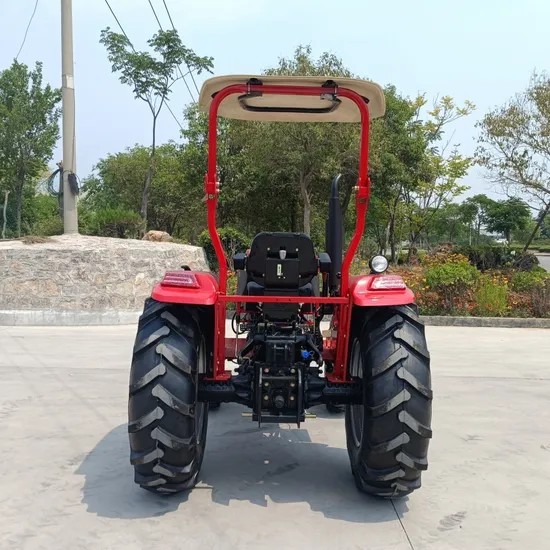

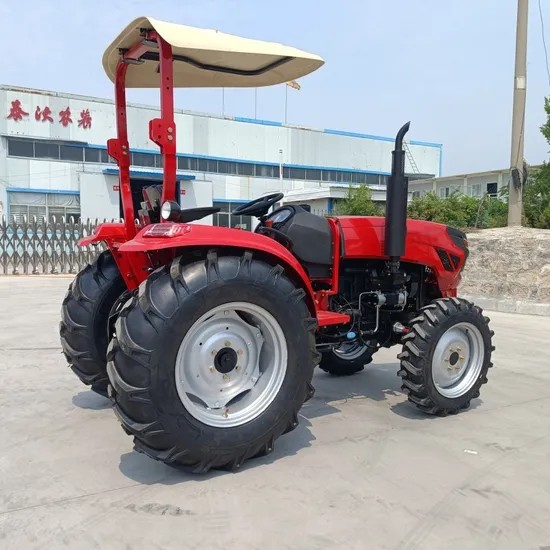

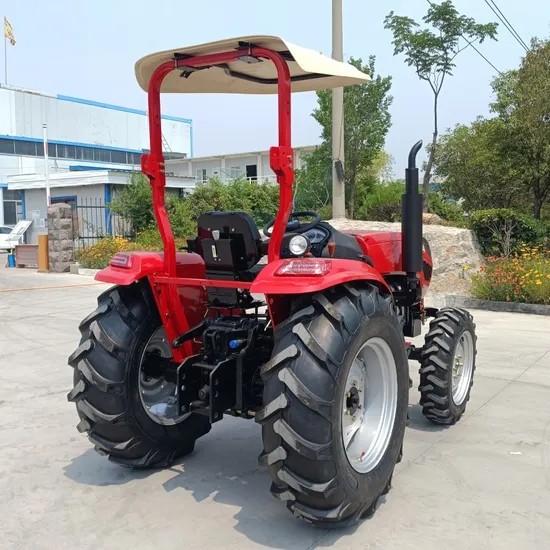

China Tavol Farming 40hp Tractor 4wd Best Autonomous Agricultural Tractor

1. Basic features
Power and drive: 40hp tractors are usually equipped with 40 horsepower engines, providing stable and powerful power output.
Applicable scenarios: This type of tractor is suitable for various operating environments such as dry land and paddy fields, and can match a variety of agricultural machinery to meet the needs of field operations such as plowing, rotary tillage, sowing, and intertillage management.

2. The main technical parameters are as follows:
Model: Tavol-404
Type: 4×4
Rated Traction (KN): 8.4
PTO Max Power (KW): 25
Dimensions (mm): 3560×1450×2150
Wheelbase (mm): 1885
Track (mm): Front wheel (mm): 1250
Rear wheel (mm): 1000-1300

3. Application cases
40hp tractors play an important role in agricultural production, such as for tillage, sowing, harvesting and other operations. Their use with various agricultural machinery has greatly improved agricultural production efficiency and operation quality.

4. Purchase suggestions
When purchasing a 40hp tractor, it is recommended to choose according to your own operating needs and budget. At the same time, you can pay attention to the brand, performance, after-sales service and other aspects of the product to ensure that you purchase a tractor product with high cost performance and reliable quality.
Availability:
Quantity:
  • TL404

  • TAVOL

  • 8701921000


The 40hp tractor is a fully functional agricultural machinery equipped with a 4-cylinder diesel engine that provides stable and reliable power output. It has a hydraulic steering system, which makes driving easier and more convenient. The tractor is suitable for a variety of farmland operation scenarios, such as tillage, sowing, harvesting, etc., and can meet the diverse needs of farmers. Its structural design is reasonable, maintenance is convenient, and it has good passability and stability, and can operate efficiently in complex farmland environments. At the same time, some 40hp tractors are also equipped with advanced intelligent configurations, such as GPS navigation, fault diagnosis and other functions, which improve user experience and operation efficiency. In general, the 40hp tractor is an indispensable and important tool in modern agricultural production.


Product Advantage

1. Efficient power, energy saving and consumption reduction

The 40hp tractor is equipped with an advanced 4-cylinder diesel engine with a rated power of 29.4kW. The torque output is strong and stable, ensuring efficient power output in various farmland operations. At the same time, it adopts advanced fuel injection technology to effectively reduce fuel consumption, achieve energy saving and consumption reduction, and save operating costs for users.

2. Flexible control and comfortable experience

Equipped with a hydraulic power steering system, the driver can achieve flexible steering with just a flick of the steering wheel, which greatly reduces the driving burden. The spacious cab design, combined with an ergonomic seat, provides the driver with a comfortable working environment. In addition, the optimized shift mechanism design makes the shifting operation smoother and improves the driving experience.

3. Multi-functional application, one machine for multiple uses

With its excellent power performance and adaptability, the 40hp tractor can be widely used in various farmland operation scenarios such as tillage, sowing, harvesting, and transportation. By replacing different agricultural implements, it is easy to achieve multiple uses of one machine to meet the diverse operation needs of farmers. Its strong traction and stable driving performance ensure efficient operation in various complex farmland environments.

4. Intelligent technology improves efficiency

Some high-end 40hp tractors also incorporate intelligent technology elements, such as GPS navigation system and intelligent fault diagnosis system. The GPS navigation system can help users accurately locate the working area and improve the working accuracy and efficiency; the intelligent fault diagnosis system can monitor the operating status of the tractor in real time, find and eliminate faults in time, and ensure the smooth operation.

5. Reliable and durable, easy maintenance

The 40hp tractor built with high-quality materials and advanced manufacturing processes has extremely high reliability and durability. Its engine and transmission system have been strictly tested and optimized to ensure long-term stable operation. At the same time, easy maintenance is also a highlight of the tractor. The design of parts that are easy to disassemble and replace reduces the user's maintenance cost and time.


Technical Parameters

ModelTL404
Type4x4
Machine parametersPTO power (KN)28.2
Rated Traction (KN)6.8
Dimensions (mm)3300×1440×1870
Wheelbase (mm)1975
Track (mm)Front wheel1225-1425
Rear wheel1160-1300
Minimum ground clearance (mm)290
Turning circle radiusUnilateral  braking2.3
Not unilateral braking3
 Weight (KG)1402
Drive TrainClutchSingle stage cluth
Gearbox8+2 shift
Walking steeringTireFront wheel 6.00-16/6.5-16
Rear wheel 9.4-24/11.2-24
Braking systemService brakeMechanical hoof type
Parking brakeLocking pedal type
Working equipmentMaximum lifting force at 610mm(KN)6.64
Suspension mechanism  Three-point suspension type 1
PTO shaftPTO speed r/min540/760
EngineEngine brandLAIDONG
Engine typeDiesel engine
Engine cylinder4
StartStart methodElectric
Main fill volume (L)Radiater10
Fuel tank21
Engine sump3.5
Gearbox oil 11
Lifter9
This parameter table is for reference only, everything is based on actual products


Product Uses

1. Farmland cultivation

The 40hp tractor is an important tool for farmland cultivation. It can connect and drive tillage equipment such as plows and rotary tillers to achieve operations such as ploughing, loosening, deep plowing, and leveling the field. Its moderate power and stable performance enable the tractor to operate efficiently in various farmland environments, improve the efficiency and fertility of land cultivation, and lay a good foundation for the growth of crops.

2. Sowing and planting

During the sowing season, the 40hp tractor can achieve precise sowing operations by connecting to equipment such as seeders. Its precise control system and stable power output ensure the uniformity and accuracy of sowing, and improve the germination rate of seeds and the yield of crops. In addition, the tractor can also be used for planting operations such as transplanting and planting, providing strong support for the growth of crops.

3. Harvest and post-processing

Entering the harvest season, the 40hp tractor also plays an important role. It can be connected to equipment such as harvesters and threshers to achieve rapid harvesting and preliminary processing of crops. Its strong traction and stable driving performance ensure the efficient harvesting operation and reduce the loss of crops. At the same time, the tractor can also be used for the transportation and stacking of crops, which improves the overall efficiency of agricultural production.

4. Farmland transportation

In farmland management, 40hp tractors are also often used for transportation operations. It can load various agricultural materials and agricultural products, such as fertilizers, seeds, grains, etc., to achieve rapid transportation within the farmland and between the farmland and the warehouse. The tractor's strong, stable and reliable transportation capacity provides a convenient and efficient solution for farmland management.

5. Special operations

In addition to the above main application scenarios, 40hp tractors can also be used for some special operations. For example, in orchards, tractors can be connected to fruit tree pruning machines, sprayers and other equipment to perform fruit tree pruning and pest control; in farmland water conservancy construction, tractors can be used for digging ditches, laying pipelines and other operations; in the forestry field, tractors can also be used for the transportation of wood and the cleaning of felled land.


Product Operate Guide

A brief description of the tractor operation process: In the preparation phase, check the machine and wear safety equipment. Start smoothly after starting and adjust the speed according to needs. Adjust the tillage depth during operation and connect the farm implements to operate. After completion, slow down and stop, put the gear in neutral and turn off the engine. Safety first, regular maintenance.


Product Video



FAQ

Q1:Are you a factory? Where is your factory address?

A1:We are the factory, we located in Taian City, Shandong Province, China.

Q2:What kind of support can I expect after purchase?

A2:We can provide technical support and on-site installation support!

Q3:Can you provide operating and maintenance manuals for the tractor?

A3:Of course.

Q4:Is it possible to have a cabin?

A4:Yes,it is.

Q5:What's the estimated delivery time?

A5:Depending on the number of tractors, the delivery time is approximately 5-15 days.
