| Model | Tavol-1204 | |
| Machine parameters | Type | 4×4 |
| Rated Traction( KN) | 28 | |
| PTO Max Power (KW) | 75 | |
| Dimensions(mm) | 4510×2050×3010 | |
| Wheelbase(mm) | 2475 | |
| Track(mm) | Front wheel(mm) | 1620 |
| Rear wheel(mm) | 1850 | |
| Model | Tavol-2004 | |
| Machine parameters | Type | 4×4 |
| Rated Traction( KN) | 38 | |
| PTO Max Power (KW) | 125 | |
| Dimensions(mm) | 5400*2430*3140 | |
| Wheelbase(mm) | 2668 | |
| Track(mm) | Front wheel(mm) | 1900 |
| Rear wheel(mm) | 1700-2300 | |
| Model | Tavol-504 | |
| Machine parameters | Type | 4×4 |
| Rated Traction( KN) | 7.5 | |
| PTO Max Power (KW) | 31 | |
| Dimensions(mm) | 3560×1450×2150 | |
| Wheelbase(mm) | 2016 | |
| Track(mm) | Front wheel(mm) | 1350-1550 |
| Rear wheel(mm) | 1300-1500 | |
| Model | 1LYQ-220/222 | 1LYQ-320/322 | 1LYQ-420/422 | 1LY(T)-225/230 | 1LY(T)-325/330 | 1LY(T)-425/430 | 1LY(T)-525/530 | 1LY(T)-625/630 |
| Width of cut (mm) | 400/440 | 600/660 | 800/880 | 500/600 | 750/900 | 1000/1200 | 1250/1500 | 1500/1800 |
| Depth of cut (mm） | 20-22 | 20-22 | 20-22 | 25-30 | 25-30 | 25-30 | 25-30 | 25-30 |
| Dia of disc (mm） | 510/560 | 510/560 | 510/560 | 660/710 | 660/710 | 660/710 | 660/710 | 660/710 |
| Q’ty of disc | 2 | 3 | 4 | 2 | 3 | 4 | 5 | 6 |
| Weight (kg) | 140 | 170 | 230 | 320 | 380 | 450 | 550 | 680 |
| Tractor power (hp) | 20-30 | 30-50 | 40-60 | 35-55 | 70-80 | 80-120 | 120-150 | 150-200 |
| Mounted cat | I类三点悬挂Cat I | II类三点悬挂Cat II | ||||||
| 2BGYF-2 | 2BGYF-3 | 2BGYF-4 | 2BGYF-5 | 2BGYF-6 | 2BGYF-7 | 前精播------后普播 | 2BYF-2 | 2BYF-3 | 2BYF-4 | 2BYF-5 | 2BYF-6 | 2BYF-7 |
| 50-100 | ||||||||||||
| 2 | 3 | 4 | 5 | 6 | 7 | 2 | 3 | 4 | 5 | 6 | 7 | |
| 500-620 | ||||||||||||
| 120-320 | ||||||||||||
| 20-40 | 30-50 | 40-70 | 40-80 | 40-90 | 50-120 | 20-40 | 30-50 | 40-70 | 40-80 | 40-90 | 50-120 | |
| 180 | 210 | 275 | 340 | 410 | 125 | 155 | 195 | 240 | 290 | |||
| 三点悬挂Cat | 三点悬挂Cat | |||||||||||
| Front end loader | ||||||||
| Model | TZ03D | TZ04D | TZ05D | TZ06D | TZ08D | TZ10D | TZ12D | |
| Rated lift capacity | kg | 300 | 400 | 500 | 600 | 800 | 1000 | 1200 |
| Max. dump height | mm | 1800 | 2000 | 2100 | 2200 | 2350 | 2350 | 2500 |
| Digging depth | mm | 100 | 120 | 140 | 140 | 180 | 180 | 200 |
| Bucket capacity | m³ | 0.18 | 0.3 | 0.35 | 0.4 | 0.48 | 0.6 | 1 |
| Dump angle | (°) | 42-45 | 42-45 | 42-45 | 42-45 | 42-45 | 42-45 | 42-45 |
| Weight | kg | 400 | 450 | 500 | 550 | 600 | 700 | 800 |
| Backhoe | |||||
| Model | LW-6 | LW-7 | LW-8 | LW-12 | |
| Max. digging depth | mm | 1700 | 2100 | 2600 | 3600 |
| Max. unloading height | mm | 1700 | 2300 | 2500 | 3200 |
| Max. digging height | mm | 2700 | 3300 | 3400 | 4500 |
| Max. digging depth flat bottom | mm | 1600 | 2000 | 2500 | 3500 |
| Max. swing angle | (°) | 180 | 180 | 180 | 180 |
| Bucket rotation angle | (°) | 160 | 160 | 160 | 174 |
| Bucket capacity | m³ | 0.03 | 0.048 | 0.06 | 0.2 |
| Weight | kg | 450 | 500 | 540 | 1050 |

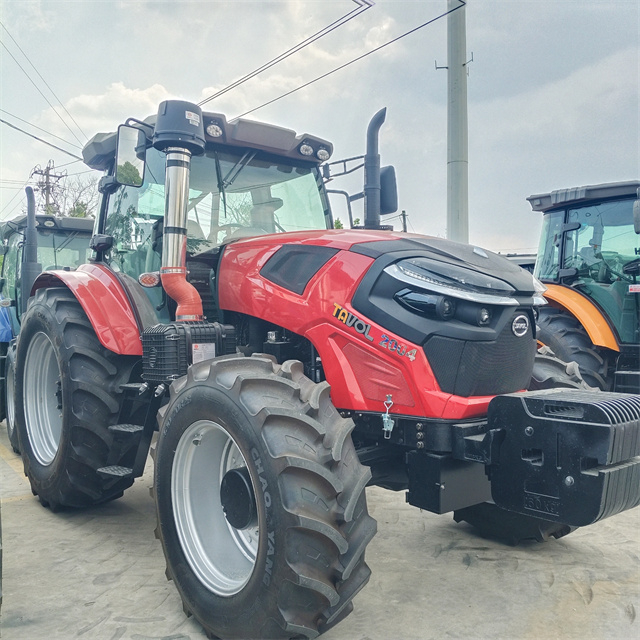

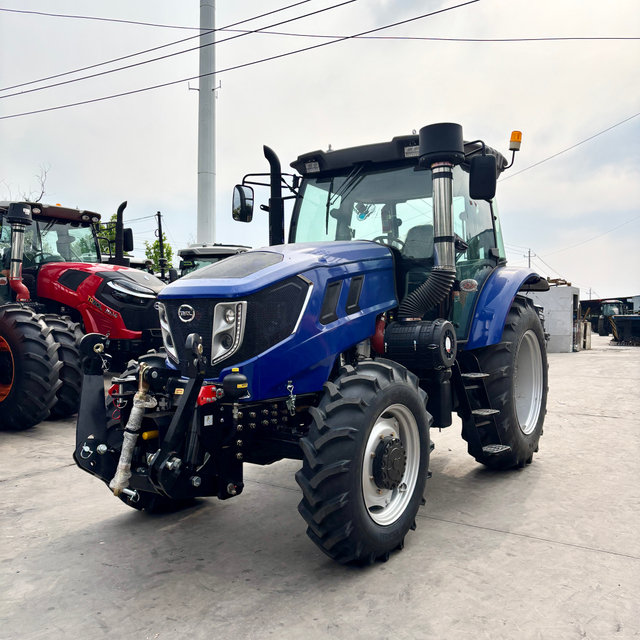

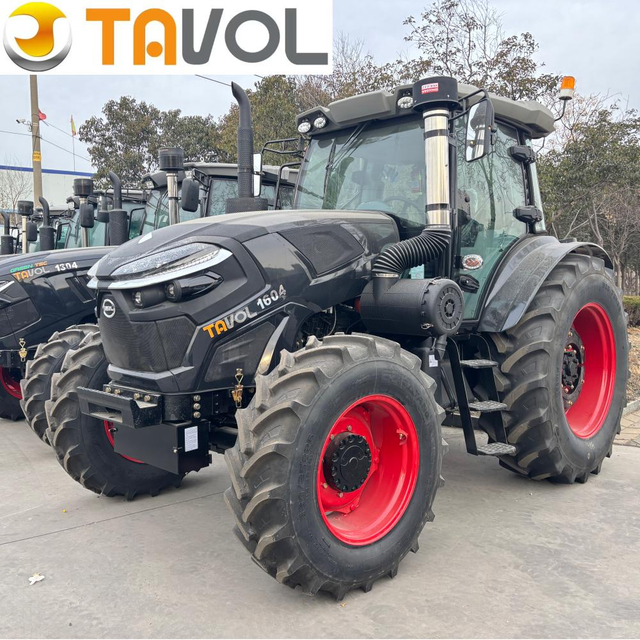

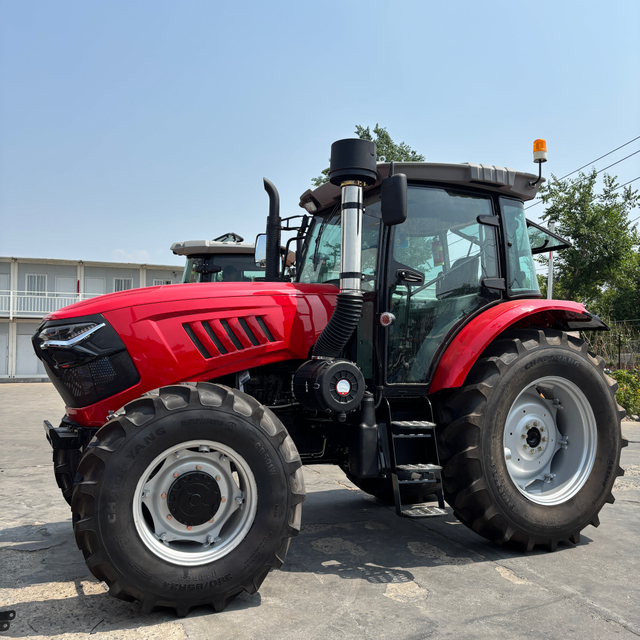

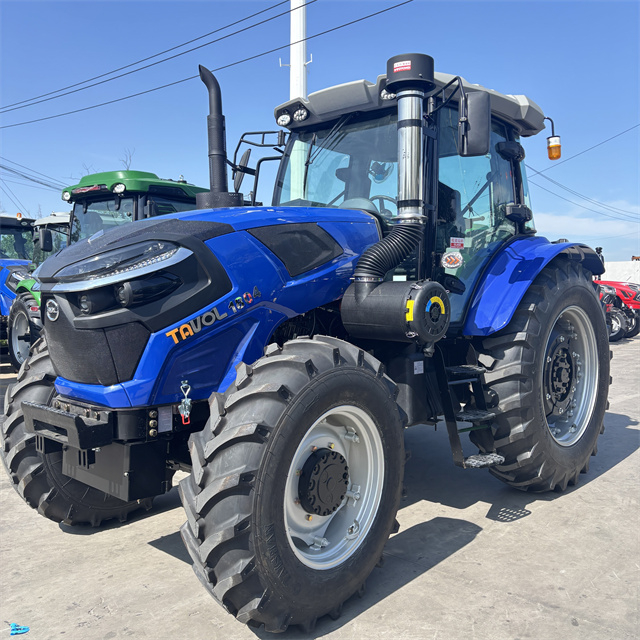

Tavol’s 150hp-200hp tractors are engineered to balance power and efficiency, making them versatile for medium to large-scale farming needs. With robust engines and durable construction, these tractors handle tasks such as tilling, planting, and material transport with ease.
Our 150hp-200hp tractors feature advanced steering and comfortable cabins, providing the operator with optimal control and visibility in demanding agricultural environments. They are also compatible with a wide array of attachments to meet your specific farming requirements.
Reach out today to see how our 150hp-200hp tractors can support your agricultural activities.
