CPCD
Tavol

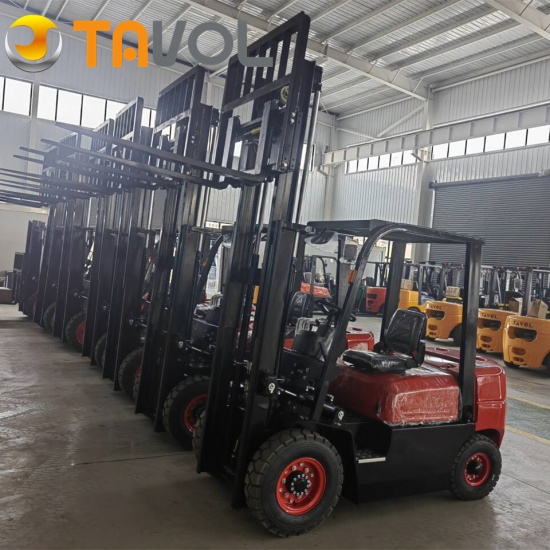

Tavol forklift adopts the streamline design that makes the appearance more pleasing, using domestic well-known engine brand which is powerful, dependable, easy to service, and with low emissions and fuel consumption. Our forklift can reduce your cost,provide greater productivity and profitability for you.
1.Strong power: The diesel engine provides sufficient power to ensure stable operation under various working conditions.
2.Flexible operation: The fully hydraulic steering system makes the operation more flexible and light, making it easy to handle even in narrow spaces.
3.Safe and reliable: Equipped with a variety of safety protection devices, such as electronic and hydraulic overload protection, emergency power-off switches, etc., to ensure the safety of equipment and operators.
4.Convenient maintenance: compact structure, easy disassembly and replacement of parts, and convenient maintenance.
| Model | CPC20/ CPCD20 |
| Rated Loading Capacity (kg) | 2000 |
| Load Center Distance (mm) | 500 |
| Max Lifting Speed (Full load) (mm/h) | 400 |
| Max Driving Speed (Empty/Full load) (km/h) | 17/19 |
| Fork Lifting Height (mm) | 3000 |
| Mast Tilt Angle (Forward andBackward) | 6°/12° |
| Min. Turning Radius (mm) | 2450 |
| Min. Ground Clearance (mm) | 110 |
| Length (Including Fork) (mm) | 3605 |
| Width (mm) | 1160 |
| Height From Ground to Overhead Guard (mm) | 2095 |
| Front Overhang (mm) | 451 |
| Wheel Base (mm) | 1640 |
| Front Wheel Track (mm) | 970 |
| Rear Wheel Track (mm) | 970 |
| Front Wheel Tyre | 7.00-12 |
| Rear Wheel Tyre | 6.00-9 |
| Self Weight (kg) | 3320 |
| Standard Fork Length (mm) | 1070 |
| Engine Rated Power (kw) | 36.8 |
| Engine Speed At Rated Power (rmp) | 2500 |
| Engine Maximum Torque (Nm) | 157 |
| Engine Speed At Maximum Torque (rpm) | 1800 |
| Variable speed form | Mechanical/ Hydraulic |
1.Logistics and warehousing: moving and stacking heavy goods in the warehouse to improve the efficiency of warehousing operations.
2.Manufacturing: Move raw materials, semi-finished products and finished products within production lines and workshops to support the smooth flow of production processes.
3.Construction site: Transport construction materials and equipment on the construction site to reduce manual labor intensity.
1. Correctly shift gears: Forklifts generally have two gear levers, which control forward, reverse and speed respectively. When shifting into gear, depress the clutch and make sure the gear is selected correctly.
2. Smooth driving: Keep the vehicle speed steady during driving, and avoid sudden acceleration, sudden braking, and sharp turns to reduce equipment wear and safety hazards.
3. Reasonable loading: Load goods reasonably according to the rated load capacity of the forklift to avoid overloading. At the same time, ensure that the goods are placed smoothly on the forks to avoid unbalanced loading or slipping.
1.Engine: Standard China Xinchai engine,optional Japan Isuzu, Yanmar and Mitsubishi engine and others.
2.Transmission: Mechanical and Automatic transmission can be choosen.
3.Mast: Standard 2-stages 3000mm mast, optional 3-stages 4500mm -6000mm mast and others.
4.Fork: Standard 1220mm fork, optional 1370mm, 1520mm, 1670mm and 1820mm forks.
5.Attachment: Side shifter, fork positioner, 360 degree rotator,bale clamp, paper roll clamp and other attachments are supported.
6.Tires: Standard pneumatic tire, optional solid tire.
1.Logo
We have our own logo. And we also can put your logo for free.
2.What should we do if there have quality problems?
During warranty period we will provide free spare parts for free.
3. How long is the warranty period of your products?
Typically 1 year or 2000 working hours, whichever comes first. Please refer to the Tavol warranty policy for each model for details.
4、How about your delivery time?
Usually 25 days. In peak season,30-40 days
5.Can you provide OEM?
Yes,we can.
Side Shift |  Side Shift And Fork Adjustment |
Japanese Isuzu C240 Engine |
Chinese Xinchai Brand Engine |
YQX-Automatic Transmission |
Japanese Mitsubishi Engine |
2 Stages Full Free Mast |  3 Stages Full Free Mast |
2 Stages Mast | |
Standard Xinchai Brand Diesel Engine In-line 4-cylinder water-cooled, 4-stroke, electronically controlled VP pump, rated power 36.8Kw, maximum torque 165Nm, emissions meet the requirements of China's fourth-stage emission standards; Strong power, high reliability, to meet the use of high-load conditions; The whole machine has high reliability and stable quality, ensuring a long service life. |
Famouse ZhongChai Brand Hydraulic Transmission The first domestic brand, is selected. The transmission of the hydraulic transmission gearbox is more stable, the shifting is lighter and more flexible, and the driving is light and comfortable,work intensity. |
Product Configuration | |
Anti-Fatigue Seat New suspension adjustable seat, More comfortable when working |
Hydraulic Steering Make the steering smoother and quicker to ensure the safety of the driver |
Compound Chain Strong pull and easy lifting, thinckingto prevent safety accidents |
Famous Brand Engine powerful, dependable, easy toservice, and with low emissions andfuel consumption |
Safe Overhead Guard Protect the driver |
Wear-resistant Tire Adapt different roads and working environment |
LED Light Save electricity, longer service life |
Electric Switch Convenient to turn the lights on and off |
Instrument Board See driving data clearly | |
