CPQYD
Tavol

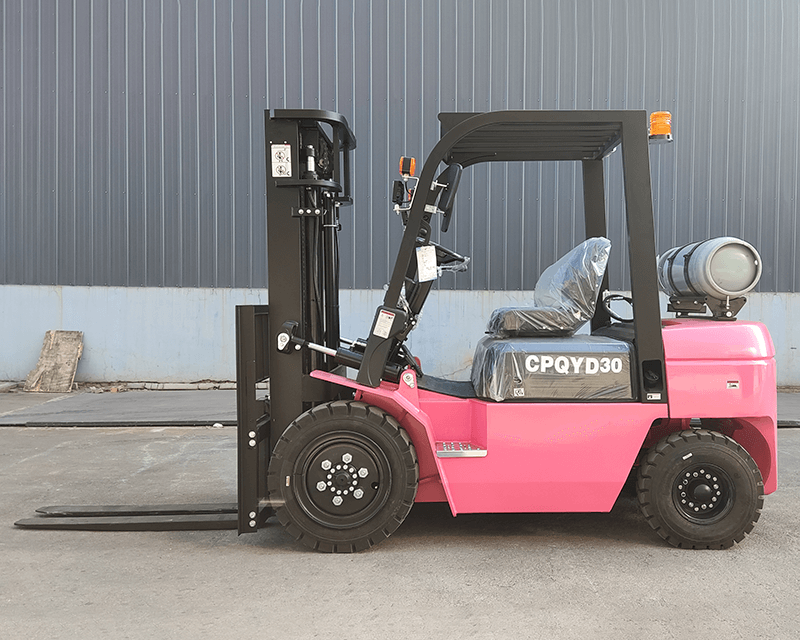

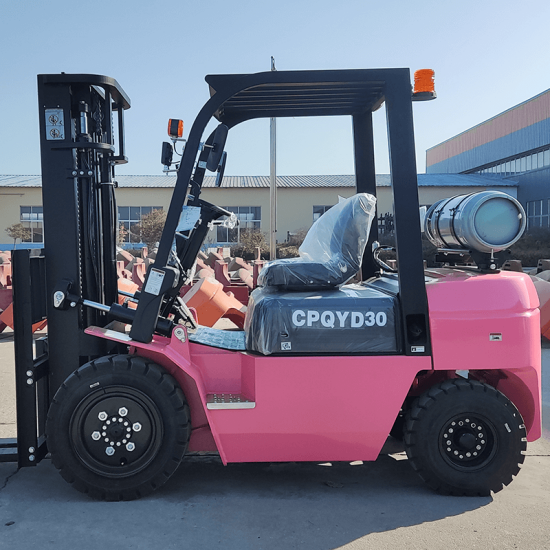

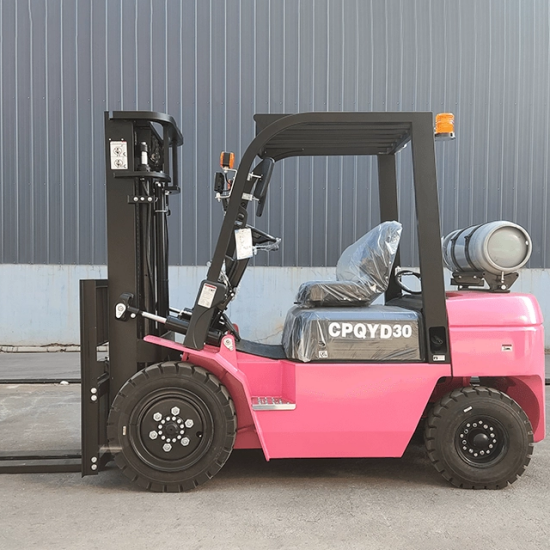

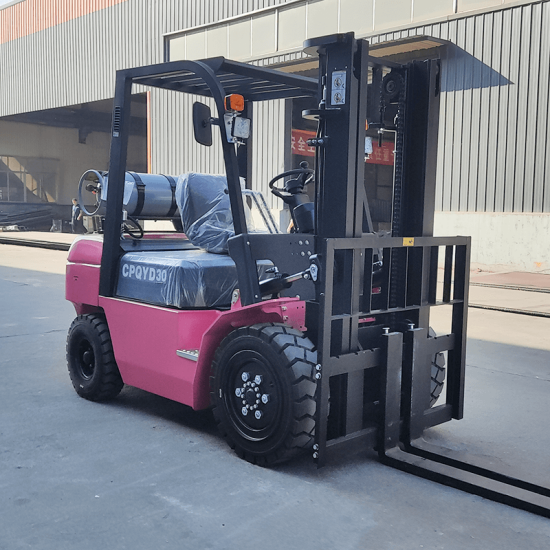

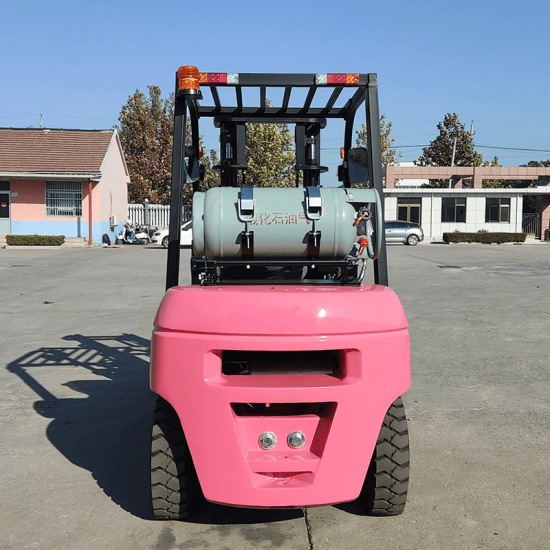

The three-ton dual-fuel forklift is an efficient, flexible and environmentally friendly industrial handling equipment. It is widely used in logistics, warehousing, factories, construction sites and other occasions for the transportation and stacking of goods. Forklifts use a dual-fuel system, which typically includes gasoline and liquefied petroleum gas (LPG). It can be flexibly switched according to actual needs, which not only ensures the power performance, but also reduces the operating cost.
Product Advantages:
1. Power performance: Engine: Equipped with high-performance gasoline or diesel engine, providing stable and reliable power output. Some models can be equipped with engines from well-known brands such as the Mitsubishi 4G64 and Nissan K25.
Dual-fuel system: allows users to choose to use gasoline or LPG as a power source according to fuel prices, environmental requirements or actual conditions, improving economy and flexibility.
2. Operation performance: hydraulic transmission: hydraulic transmission mode, smooth gear shifting, easy operation.
Large lifting height, wide working range: suitable for cargo loading and unloading and stacking operations at different heights.
3. Safety performance: safety LPG device: ensure the safe storage and use of LPG fuel.
Top guards: The top guards are stamped and formed in one step to provide reliable safety protection.
Technical parameters
| 3 ton LPG forklift specifications | ||||||
| type | CPQYD30H | |||||
| Rated capacity | kg | 3000 | ||||
| Load center | millimetre | 500 | ||||
| Lifting height (max) | millimetre | 3000 | ||||
| Lift the height freely | millimetre | 80 | ||||
| Mast tilt angle | F/R | degree | 6°/12° | |||
| Lifting speed (max) | load | mm/s | 470/440 | |||
| Traction (max) | Loaded/uninstalled | KN (English) | 15.5/10.5 | |||
| Travel speed (max) | Loaded/uninstalled | km/h | 18/20 | |||
| Grading ability below full score | Loaded/uninstalled | % | 15/20 | |||
| Load (max) | ||||||
| Turning radius (minimum) | millimetre | 2500 | ||||
| Minimum clearance from the ground | millimetre | 135 | ||||
| Ground to upper frame height | millimetre | 2110 | ||||
| wheelbase | millimetre | 1700 | ||||
| Car tread covers | F/R | millimetre | 1000/970 | |||
| Front overhang | millimetre | 465 | ||||
| size | length | With forks | millimetre | 3800 | ||
| width | millimetre | 1230 | ||||
| Enclosed mast height | millimetre | 2110 | ||||
| Overhead guard height | millimetre | 2105 | ||||
| Maximum working height | with/without backrest | millimetre | 4270 | |||
| Fork size | LXWXT | millimetre | 1220x122x45 | |||
| Standard fork length | millimetre | 1220 | ||||
| dead weight | kg | 4320 | ||||
| tired | 2 units | Pneumatic tires | ||||
| 2 units | Pneumatic tires | |||||
| brand | Guangqing/Nissan K25 engine | |||||
Product Use:
Due to its high efficiency, flexibility and environmental friendliness, the three-ton dual-fuel forklift truck is suitable for various industrial handling scenarios:
1. Logistics distribution center: used for transporting and stacking all kinds of small, light and large quantities of goods.
2. Factory workshop: In the environment with limited warehouse area and a wide variety of goods, the stacking operation of multiple categories of goods is carried out.
3. Construction site: handling and stacking building materials, such as steel bars, wood, etc.
4. Port terminal: used for loading and unloading containers and other heavy objects.
5. Special environment: For example, in a flammable and explosive hazardous environment, an explosion-proof three-ton dual-fuel forklift can be selected to operate to ensure the safety of operation.
Product Operation Guide
Cargo handling
1. Determine the weight and position of the goods: Before handling the goods, it should be determined whether the weight of the goods is within the carrying capacity of the forklift, and the appropriate fork position and angle should be selected.
2. Stable lifting: When operating the lifting rod, it is necessary to ensure that the action is smooth and slow, so as to avoid tilting, shaking or falling of the goods.
3. Accurate placement of goods: After moving the goods to the designated position, accurately place the goods and adjust the forks to the appropriate height, and then slowly exit.
frequently asked questions
1. Who are we?
We are based in Shandong, China, start from 2012,sell to South America(30.00%),Southeast Asia(15.00%),Africa(10.00%),South Asia(9.00%),Domestic Market(5.00%),Eastern Asia(5.00%),Mid East(5.00%),North America(5.00%),Northern Europe(5.00%),Central America(3.00%),Western Europe(2.00%),Southern Europe(2.00%),Eastern Europe(2.00%), Oceania (2.00%). In total, we have about 51-100 people in our office.
2. How can we guarantee the quality?
Before mass production, it is always a pre-production sample;
Always do a final inspection before shipment.
3. What can you buy from us?
Wheel loaders, backhoe loaders, rough all-terrain forklifts, etc.
4. why should you buy from us not from other suppliers?
We have an excellent R&D team, all designers have a bachelor's degree or above in mechanical engineering, and have more than 10 years of work experience in the construction machinery industry.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FCA, CPT, DDU, Express;
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, Switzerland Franc;
Accepted Payment Methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow;
Languages: English, Chinese.
