CPCD
Tavol
Tavol forklifts have a streamlined design that makes the appearance more aesthetically pleasing. It adopts a well-known domestic engine brand, with strong power, reliable performance, convenient maintenance, low emission and low fuel consumption. Our forklifts can reduce your costs and provide you with greater productivity and profitability.

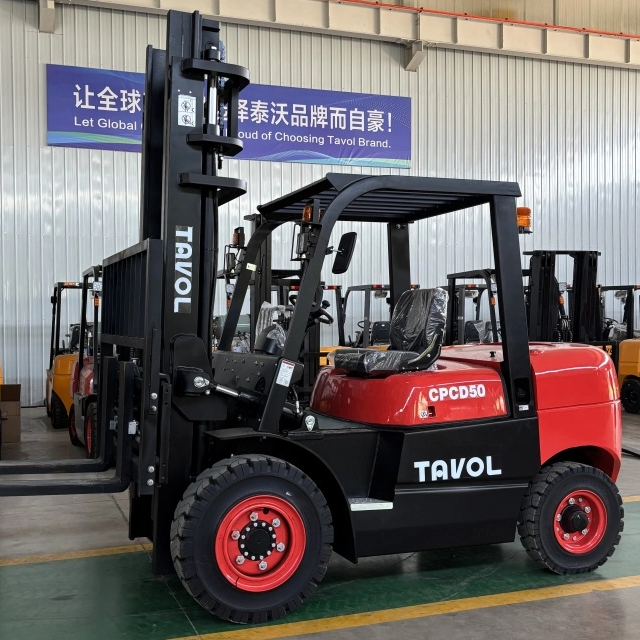

| type | CPCD50 |
| Rated load capacity(kg) | 5000 |
| Load center distance (mm) | 500 |
| Maximum lifting speed (full load) (mm/h) | 375 |
| Maximum travel speed (unloaded/fully loaded) (km/h) | 20/24 |
| Fork lifting height (mm) | 3000 |
| Mast tilt angle (forward and backward) | 6°/12° |
| Minimum turning radius (mm) | 3000 |
| Minimum Ground Clearance (mm) | 170 |
| Length (including forks) (mm) | 4350 |
| Width (mm) | 1400 |
| Height from ground to overhead guards (mm) | 2330 |
| Front overhang (mm) | 585 |
| Wheelbase (mm) | 2150 |
| Front track (mm) | 1180 |
| Rear track (mm) | 1190 |
| Front tyres | 300-15 |
| Rear tires | 7.0-12 |
| Self-weight(kg) | 6800 |
| Standard fork length (mm) | 1220 |
| Engine rated power (kw) | 62.5 |
| Engine speed at rated power (rmp) | 2200 |
| Maximum Engine Torque (Nm) | 320 |
| Engine speed at maximum torque (rpm). | 1800 |
| Variable speed form | hydraulic |
We produce:
2 tons to 10 tons diesel forklift;
1 ton to 3.5 ton electric forklift;
2 ton to 4 ton dual fuel (gasoline and gasoline) forklift.
Lifting heights from 3 to 6 meters.
Optional:
1. Engine: standard Chinese new diesel engine, optional Japan Isuzu, Yanmar, Mitsubishi engine, etc.
2. Transmission mode: mechanical and automatic transmission can be selected.
3. Mast: standard grade 2 3000mm mast, optional grade 3 4500mm -6000mm mast, etc.
4. Forks: standard 1220mm forks, optional 1370mm, 1520mm, 1670mm and 1820mm forks.
5. Accessories: Support side shift lever, fork locator, 360 degree rotator, bundle clamp, paper roll clamp and other accessories.
6. Tires: standard pneumatic tires, optional solid tires.
Sideshift |  Side shift and fork adjustments |
Japanese Isuzu C240 Engine |
Chinese Xinchai Brand Engine |
YQX-Automatic Transmission |
Japanese Mitsubishi Engine |
2 Stages Full Free Mast |  3 Stages Full Free Mast |
2 Stages Mast | |
Standard Xinchai Brand Diesel Engine In-line 4-cylinder water-cooled, 4-stroke, electronically controlled VP pump, rated power 36.8Kw, maximum torque 165Nm, emissions meet the requirements of China's fourth-stage emission standards; Strong power, high reliability, to meet the use of high-load conditions; The whole machine has high reliability and stable quality, ensuring a long service life. |
Famouse ZhongChai Brand Hydraulic Transmission The first domestic brand, is selected. The transmission of the hydraulic transmission gearbox is more stable, the shifting is lighter and more flexible, and the driving is light and comfortable,work intensity. |
Product Configuration | |
Anti-Fatigue Seat New suspension adjustable seat, More comfortable when working |
Hydraulic Steering Make the steering smoother and quicker to ensure the safety of the driver |
Compound Chain Strong pull and easy lifting, thinckingto prevent safety accidents |
Famous Brand Engine powerful, dependable, easy toservice, and with low emissions andfuel consumption |
Safe Overhead Guard Protect the driver |
Wear-resistant Tire Adapt different roads and working environment |
LED Light Save electricity, longer service life |
Electric Switch Convenient to turn the lights on and off |
Instrument Board See driving data clearly | |
