| Model | Tavol-1204 | |
| Machine parameters | Type | 4×4 |
| Rated Traction( KN) | 28 | |
| PTO Max Power (KW) | 75 | |
| Dimensions(mm) | 4510×2050×3010 | |
| Wheelbase(mm) | 2475 | |
| Track(mm) | Front wheel(mm) | 1620 |
| Rear wheel(mm) | 1850 | |
| Model | Tavol-2004 | |
| Machine parameters | Type | 4×4 |
| Rated Traction( KN) | 38 | |
| PTO Max Power (KW) | 125 | |
| Dimensions(mm) | 5400*2430*3140 | |
| Wheelbase(mm) | 2668 | |
| Track(mm) | Front wheel(mm) | 1900 |
| Rear wheel(mm) | 1700-2300 | |
| Model | Tavol-504 | |
| Machine parameters | Type | 4×4 |
| Rated Traction( KN) | 7.5 | |
| PTO Max Power (KW) | 31 | |
| Dimensions(mm) | 3560×1450×2150 | |
| Wheelbase(mm) | 2016 | |
| Track(mm) | Front wheel(mm) | 1350-1550 |
| Rear wheel(mm) | 1300-1500 | |
| Model | 1LYQ-220/222 | 1LYQ-320/322 | 1LYQ-420/422 | 1LY(T)-225/230 | 1LY(T)-325/330 | 1LY(T)-425/430 | 1LY(T)-525/530 | 1LY(T)-625/630 |
| Width of cut (mm) | 400/440 | 600/660 | 800/880 | 500/600 | 750/900 | 1000/1200 | 1250/1500 | 1500/1800 |
| Depth of cut (mm） | 20-22 | 20-22 | 20-22 | 25-30 | 25-30 | 25-30 | 25-30 | 25-30 |
| Dia of disc (mm） | 510/560 | 510/560 | 510/560 | 660/710 | 660/710 | 660/710 | 660/710 | 660/710 |
| Q’ty of disc | 2 | 3 | 4 | 2 | 3 | 4 | 5 | 6 |
| Weight (kg) | 140 | 170 | 230 | 320 | 380 | 450 | 550 | 680 |
| Tractor power (hp) | 20-30 | 30-50 | 40-60 | 35-55 | 70-80 | 80-120 | 120-150 | 150-200 |
| Mounted cat | I类三点悬挂Cat I | II类三点悬挂Cat II | ||||||
| 2BGYF-2 | 2BGYF-3 | 2BGYF-4 | 2BGYF-5 | 2BGYF-6 | 2BGYF-7 | 前精播------后普播 | 2BYF-2 | 2BYF-3 | 2BYF-4 | 2BYF-5 | 2BYF-6 | 2BYF-7 |
| 50-100 | ||||||||||||
| 2 | 3 | 4 | 5 | 6 | 7 | 2 | 3 | 4 | 5 | 6 | 7 | |
| 500-620 | ||||||||||||
| 120-320 | ||||||||||||
| 20-40 | 30-50 | 40-70 | 40-80 | 40-90 | 50-120 | 20-40 | 30-50 | 40-70 | 40-80 | 40-90 | 50-120 | |
| 180 | 210 | 275 | 340 | 410 | 125 | 155 | 195 | 240 | 290 | |||
| 三点悬挂Cat | 三点悬挂Cat | |||||||||||
| Front end loader | ||||||||
| Model | TZ03D | TZ04D | TZ05D | TZ06D | TZ08D | TZ10D | TZ12D | |
| Rated lift capacity | kg | 300 | 400 | 500 | 600 | 800 | 1000 | 1200 |
| Max. dump height | mm | 1800 | 2000 | 2100 | 2200 | 2350 | 2350 | 2500 |
| Digging depth | mm | 100 | 120 | 140 | 140 | 180 | 180 | 200 |
| Bucket capacity | m³ | 0.18 | 0.3 | 0.35 | 0.4 | 0.48 | 0.6 | 1 |
| Dump angle | (°) | 42-45 | 42-45 | 42-45 | 42-45 | 42-45 | 42-45 | 42-45 |
| Weight | kg | 400 | 450 | 500 | 550 | 600 | 700 | 800 |
| Backhoe | |||||
| Model | LW-6 | LW-7 | LW-8 | LW-12 | |
| Max. digging depth | mm | 1700 | 2100 | 2600 | 3600 |
| Max. unloading height | mm | 1700 | 2300 | 2500 | 3200 |
| Max. digging height | mm | 2700 | 3300 | 3400 | 4500 |
| Max. digging depth flat bottom | mm | 1600 | 2000 | 2500 | 3500 |
| Max. swing angle | (°) | 180 | 180 | 180 | 180 |
| Bucket rotation angle | (°) | 160 | 160 | 160 | 174 |
| Bucket capacity | m³ | 0.03 | 0.048 | 0.06 | 0.2 |
| Weight | kg | 450 | 500 | 540 | 1050 |
Tavol tractor attachments can significantly improve agricultural production efficiency.
For example,:
Farmland attachments, such as plowshares and harrows, can quickly plow the land and prepare soil conditions for sowing.

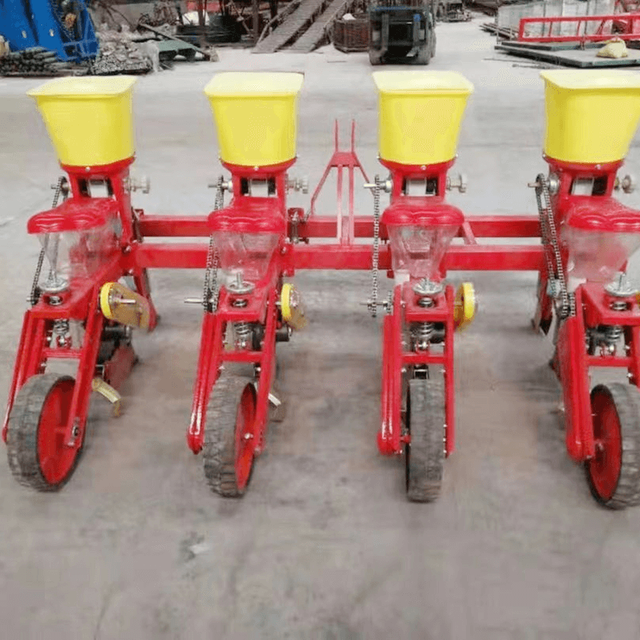

Planting attachments, such as planters and seeders, can accurately control seeding density and depth, improving the germination and survival rates of seeds.
Harvesting attachments, such as harvesters and lawn mowers, can quickly harvest crops and reduce harvest time.
The combined use of these attachments makes the agricultural production process more efficient and orderly.
The use of Tavol tractor attachments greatly reduces farmers' labor intensity. This allows farmers to sit on the driver's seat of the tractor and complete various field operations by operating attachments, thereby greatly reducing labor intensity and improving operating comfort.
Tavol tractor attachments can optimize the use of agricultural resources, making agricultural resources more rational and efficient, and improving the sustainability of agricultural production.
The introduction of Tavol tractor attachments also promotes sustainable development in agriculture. By improving production efficiency, reducing labor intensity and optimizing resource utilization, tractor attachments help farmers achieve higher economic and social benefits. At the same time, the use of these attachments also reduces the negative impact of agricultural production on the environment, such as reducing the use of chemical fertilizers and pesticides, reducing energy consumption, etc., thus helping to protect the ecological environment and promote the green development of agriculture.
Reach out today to learn more about our tractor attachments and how they can support your farm's productivity.
