| Model | Tavol-1204 | |
| Machine parameters | Type | 4×4 |
| Rated Traction( KN) | 28 | |
| PTO Max Power (KW) | 75 | |
| Dimensions(mm) | 4510×2050×3010 | |
| Wheelbase(mm) | 2475 | |
| Track(mm) | Front wheel(mm) | 1620 |
| Rear wheel(mm) | 1850 | |
| Model | Tavol-2004 | |
| Machine parameters | Type | 4×4 |
| Rated Traction( KN) | 38 | |
| PTO Max Power (KW) | 125 | |
| Dimensions(mm) | 5400*2430*3140 | |
| Wheelbase(mm) | 2668 | |
| Track(mm) | Front wheel(mm) | 1900 |
| Rear wheel(mm) | 1700-2300 | |
| Model | Tavol-504 | |
| Machine parameters | Type | 4×4 |
| Rated Traction( KN) | 7.5 | |
| PTO Max Power (KW) | 31 | |
| Dimensions(mm) | 3560×1450×2150 | |
| Wheelbase(mm) | 2016 | |
| Track(mm) | Front wheel(mm) | 1350-1550 |
| Rear wheel(mm) | 1300-1500 | |
| Model | 1LYQ-220/222 | 1LYQ-320/322 | 1LYQ-420/422 | 1LY(T)-225/230 | 1LY(T)-325/330 | 1LY(T)-425/430 | 1LY(T)-525/530 | 1LY(T)-625/630 |
| Width of cut (mm) | 400/440 | 600/660 | 800/880 | 500/600 | 750/900 | 1000/1200 | 1250/1500 | 1500/1800 |
| Depth of cut (mm） | 20-22 | 20-22 | 20-22 | 25-30 | 25-30 | 25-30 | 25-30 | 25-30 |
| Dia of disc (mm） | 510/560 | 510/560 | 510/560 | 660/710 | 660/710 | 660/710 | 660/710 | 660/710 |
| Q’ty of disc | 2 | 3 | 4 | 2 | 3 | 4 | 5 | 6 |
| Weight (kg) | 140 | 170 | 230 | 320 | 380 | 450 | 550 | 680 |
| Tractor power (hp) | 20-30 | 30-50 | 40-60 | 35-55 | 70-80 | 80-120 | 120-150 | 150-200 |
| Mounted cat | I类三点悬挂Cat I | II类三点悬挂Cat II | ||||||
| 2BGYF-2 | 2BGYF-3 | 2BGYF-4 | 2BGYF-5 | 2BGYF-6 | 2BGYF-7 | 前精播------后普播 | 2BYF-2 | 2BYF-3 | 2BYF-4 | 2BYF-5 | 2BYF-6 | 2BYF-7 |
| 50-100 | ||||||||||||
| 2 | 3 | 4 | 5 | 6 | 7 | 2 | 3 | 4 | 5 | 6 | 7 | |
| 500-620 | ||||||||||||
| 120-320 | ||||||||||||
| 20-40 | 30-50 | 40-70 | 40-80 | 40-90 | 50-120 | 20-40 | 30-50 | 40-70 | 40-80 | 40-90 | 50-120 | |
| 180 | 210 | 275 | 340 | 410 | 125 | 155 | 195 | 240 | 290 | |||
| 三点悬挂Cat | 三点悬挂Cat | |||||||||||
| Front end loader | ||||||||
| Model | TZ03D | TZ04D | TZ05D | TZ06D | TZ08D | TZ10D | TZ12D | |
| Rated lift capacity | kg | 300 | 400 | 500 | 600 | 800 | 1000 | 1200 |
| Max. dump height | mm | 1800 | 2000 | 2100 | 2200 | 2350 | 2350 | 2500 |
| Digging depth | mm | 100 | 120 | 140 | 140 | 180 | 180 | 200 |
| Bucket capacity | m³ | 0.18 | 0.3 | 0.35 | 0.4 | 0.48 | 0.6 | 1 |
| Dump angle | (°) | 42-45 | 42-45 | 42-45 | 42-45 | 42-45 | 42-45 | 42-45 |
| Weight | kg | 400 | 450 | 500 | 550 | 600 | 700 | 800 |
| Backhoe | |||||
| Model | LW-6 | LW-7 | LW-8 | LW-12 | |
| Max. digging depth | mm | 1700 | 2100 | 2600 | 3600 |
| Max. unloading height | mm | 1700 | 2300 | 2500 | 3200 |
| Max. digging height | mm | 2700 | 3300 | 3400 | 4500 |
| Max. digging depth flat bottom | mm | 1600 | 2000 | 2500 | 3500 |
| Max. swing angle | (°) | 180 | 180 | 180 | 180 |
| Bucket rotation angle | (°) | 160 | 160 | 160 | 174 |
| Bucket capacity | m³ | 0.03 | 0.048 | 0.06 | 0.2 |
| Weight | kg | 450 | 500 | 540 | 1050 |

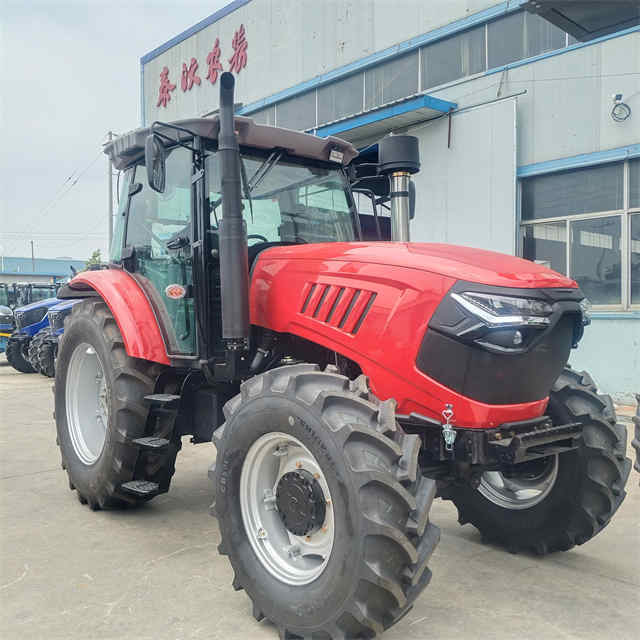

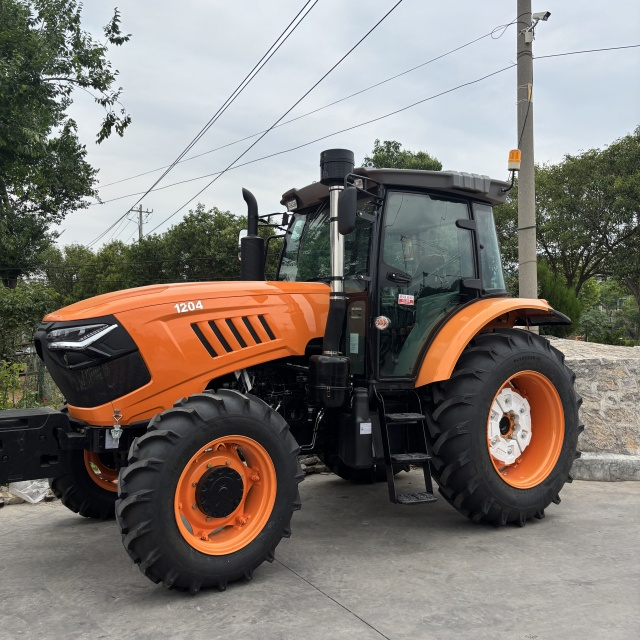

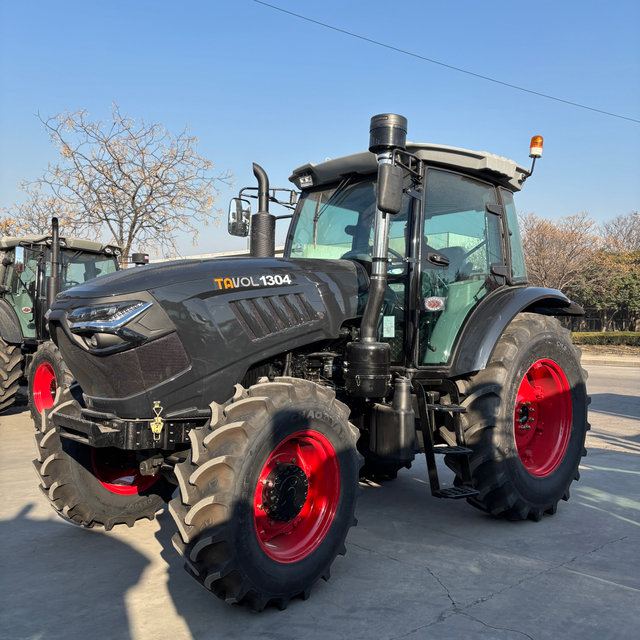

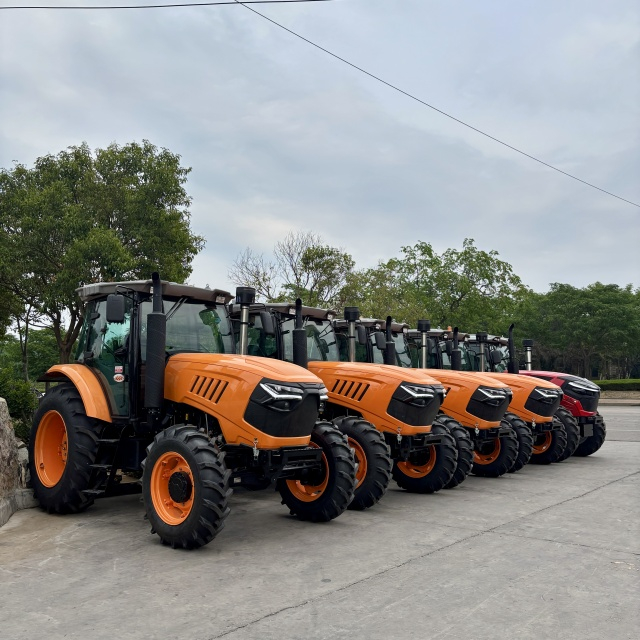

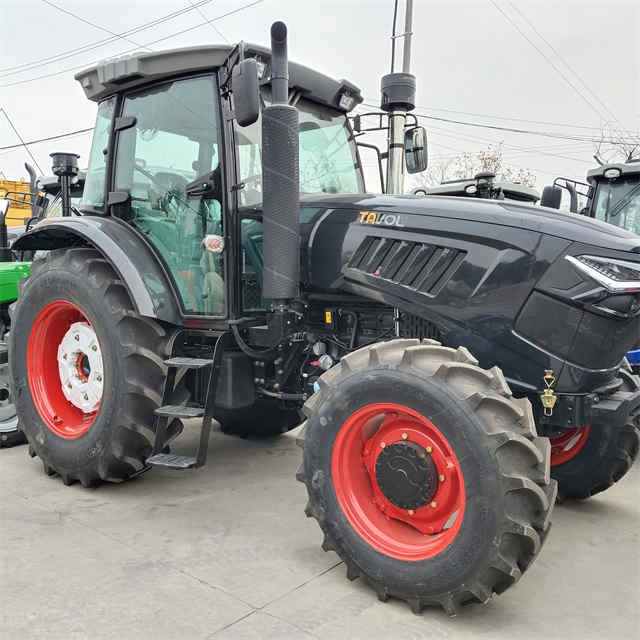

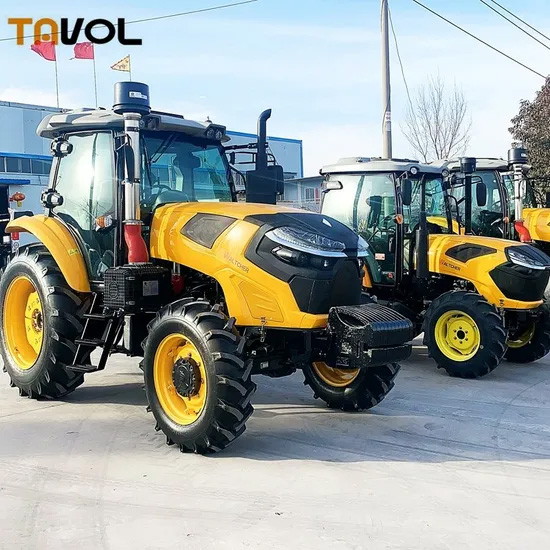

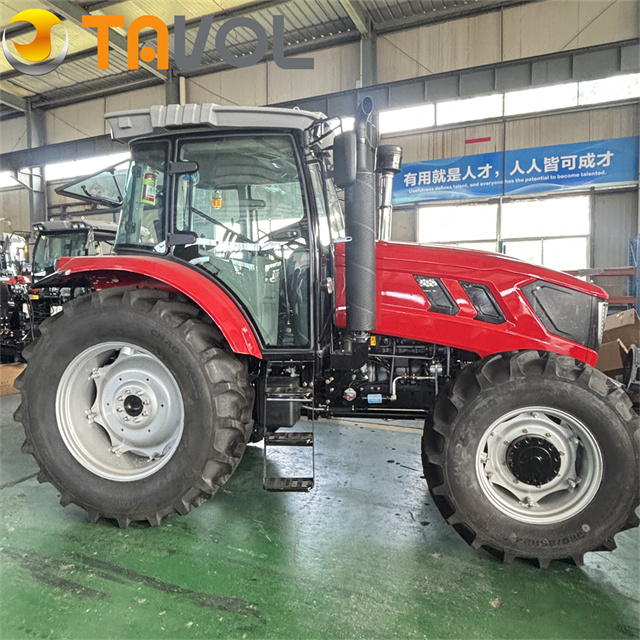

Designed for flexibility in both small and medium-scale agricultural tasks, our 110hp-140hp tractors combine power with efficient fuel consumption, making them ideal for various types of farm work. These tractors offer excellent control, operator comfort, and can be used in both row cropping and orchard settings.
With advanced hydraulics and easy attachment compatibility, these models provide versatility for tasks ranging from soil preparation to material handling. Tavol’s 110hp-140hp tractors prioritize durability and ease of use, ensuring reliable performance across multiple applications.
Contact us for details on our adaptable 110hp-140hp tractors tailored for your needs.
