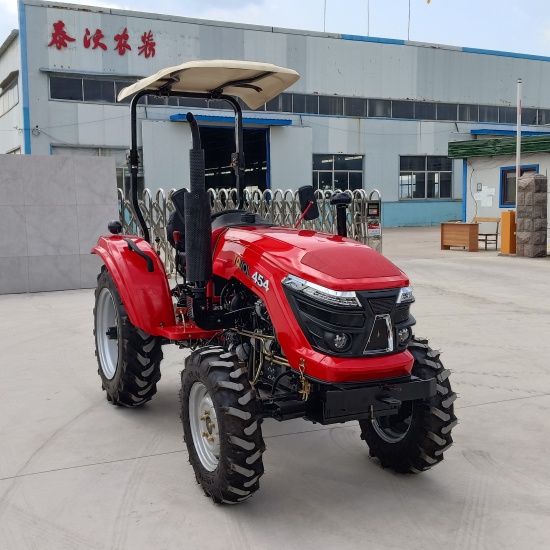

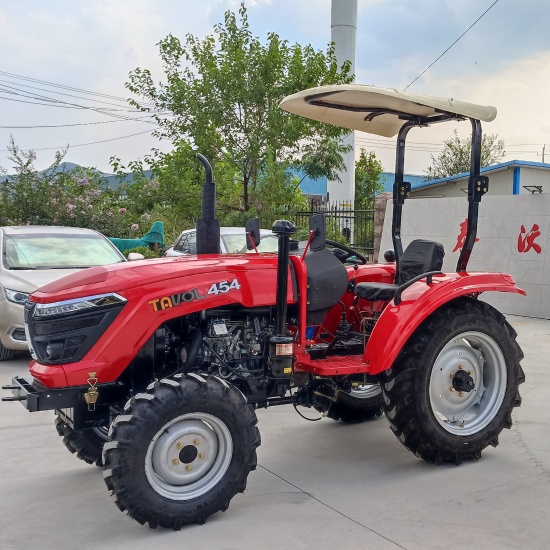

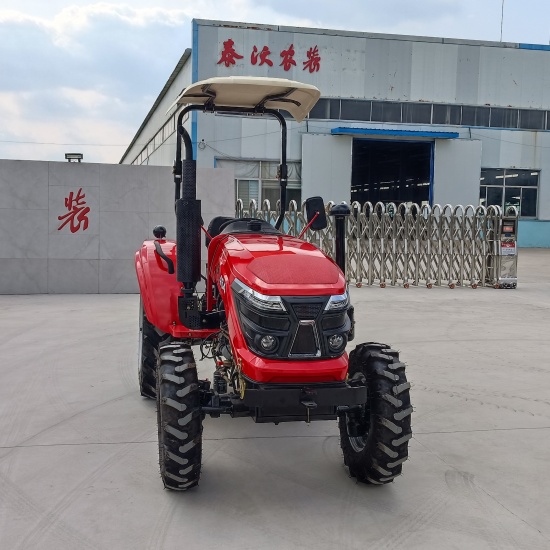

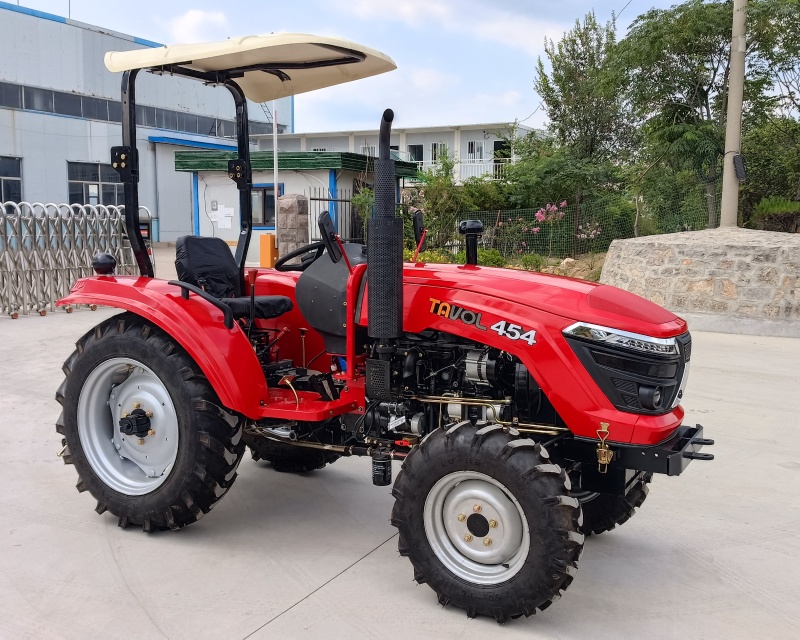

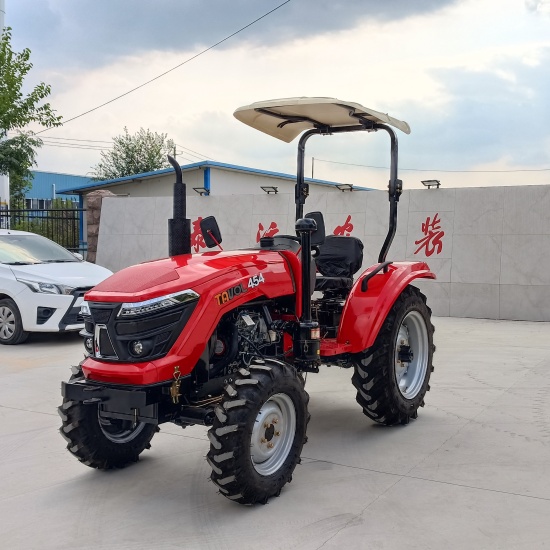

Tavol High Quality Agricultural Tractor 45hp Tractor 4wd Farm Mini Tractor

1. Product Overview
The 45hp tractor is an important part of agricultural machinery, and is favored by farmers and agricultural cooperatives for its moderate power and wide applicability. These tractors can perform a variety of field operations, such as ploughing, sowing, harvesting, etc., which greatly improves agricultural production efficiency.

2. Main Features
Powerful power: The 45hp tractor is matched with a high-quality engine, with strong power and large torque reserve coefficient, which can meet the needs of various agricultural operations.
Wide range of applications: The enhanced two-speed power output and the wide range of matching machines can easily cope with various agricultural operating conditions.
Humanized design: The new generation of streamlined hood is beautiful and atmospheric, meeting the performance requirements of safety, dust prevention, noise reduction, heat dissipation, etc. At the same time, the optimized design of the whole vehicle's ergonomics enhances the driver's sense of security and comfort.
High efficiency and low consumption: The gearbox has reasonable gears, high operating efficiency, and good fuel economy. The hydraulic lifting device adopts force adjustment, position adjustment, and force and position separate control to accurately control the operating load, effectively improve the working condition of the engine, and improve fuel economy and operation quality.

3. Basic product parameters
Model: Tavol-454
Type: 4×4
Rated Traction (KN): 8.4
PTO Max Power (KW): 25
Dimensions (mm): 3560×1450×2150
Wheelbase (mm): 1780
Track (mm): Front wheel (mm): 1250
Rear wheel (mm): 1000-1300

4. How to choose:
45hp tractors play an important role in agricultural production with their moderate power, wide applicability, high efficiency and low consumption. Different brands and models of 45hp tractors have their own characteristics, and users can choose suitable products according to actual needs.
Availability:
Quantity:
  • TL454

  • TAVOL

  • 8701921000


The 45hp tractor is a mechanical equipment suitable for a variety of agricultural operation scenarios. It uses a 4-cylinder diesel engine with strong power and low fuel consumption, which is suitable for small farmland operations. The tractor is equipped with an F8+R8 gearbox, which has smooth gear shifting and flexible control. The hydraulic steering system makes driving easier and more labor-saving. Its basic functions include various agricultural operations such as tillage, sowing, and harvesting, which can meet the diverse needs of farmers. In addition, the 45hp tractor also has good passability and stability, and can operate efficiently in complex farmland environments. In summary, the 45hp tractor is an agricultural machinery equipment with comprehensive functions, stable performance, and easy operation.


Product Advantage

1. Powerful power and efficient operation

The 45hp tractor is equipped with an advanced 4-cylinder diesel engine, which provides stable and powerful power output with a rated power of 33.1kW, ensuring that it can be used in various agricultural operation scenarios. It has a large torque reserve and fast acceleration response, which effectively improves the operation efficiency and meets the farmers' needs for efficient production.

2. Flexible control and comfortable driving

The tractor is equipped with an F8+R8 gearbox, which has smooth gear shifting and flexible control, allowing the driver to easily cope with various complex road conditions and operation requirements. At the same time, the hydraulic steering system is adopted, which makes the steering light, reduces the driver's physical exertion and improves driving comfort. The spacious driving space and humanized design further enhance the driving experience.

3. Multi-operating mode, fuel-saving and durable

The 45hp tractor has a multi-operating mode selection function, including fuel-saving, standard and powerful three gears. Users can reasonably choose according to actual operation needs to achieve the best fuel economy and operation effect. In addition, its engine and transmission system have been optimized and designed with a low failure rate and a long service life, which reduces the user's maintenance cost.

4. Wide adaptability, one machine for multiple uses

This tractor is widely used in various agricultural operation scenarios such as plowing, rotary tillage, sowing, harvesting, etc., and can meet the diverse needs of different users. Its stepless adjustable wheelbase device can adapt to different planting and operation ridge spacing requirements and achieve flexible adjustment. At the same time, the optional narrow wheelbase model further broadens its application range and improves the flexibility and adaptability of operations.

5. Intelligent configuration to improve experience

Some 45hp tractors are also equipped with intelligent configurations, such as GPS/Beidou system real-time positioning, driving trajectory recording, fault diagnosis and other functions, to provide users with accurate services and convenient guidance. These intelligent configurations not only improve the user's operating experience, but also improve the safety and efficiency of operations.


Technical Parameters

ModelTL454
Type4x4
Machine parametersPTO power (KN)28.2
Rated Traction (KN)6.8
Dimensions (mm)3300×1440×1870
Wheelbase (mm)1975
Track (mm)Front wheel1225-1425
Rear wheel1160-1300
Minimum ground clearance (mm)290
Turning circle radiusUnilateral  braking2.3
Not unilateral braking3
Weight (KG)1402
Drive TrainClutchSingle stage cluth
Gearbox8+2 shift
Walking steeringTireFront wheel 6.00-16/6.5-16
Rear wheel 9.4-24/11.2-24
Braking systemService brakeMechanical hoof type
Parking brakeLocking pedal type
Working equipmentMaximum lifting force at 610mm(KN)6.64
Suspension mechanismThree-point suspension type 1
PTO shaftPTO speed r/min540/760
EngineEngine brandLAIDONG
Engine typeDiesel engine
Engine cylinder4
StartStart methodElectric
Main fill volume (L)Radiater10
Fuel tank21
Engine sump3.5
Gearbox oil 11
Lifter9
This parameter table is for reference only, everything is based on actual products


Product Uses

1. Farming operations: With its moderate power and flexible maneuverability, the 45hp tractor is very suitable for the farming stage of farmland. It can pull farming equipment for plowing, harrowing and other operations, significantly improving soil aeration and fertility and laying a good foundation for crop growth.

2. Seeding and planting: During the planting season, 45hp tractors can be used for seeding operations. Through precise matching of seeding equipment, planting efficiency and accuracy can be improved to ensure uniformity of crop distribution and consistency of growth.

3. Harvesting and post-processing: Entering the harvest season, this model of tractor also performs well. It can pull harvesters, balers and other mechanical equipment to perform efficient harvesting and baling operations, reducing crop losses and improving agricultural production efficiency.

4. Transportation and handling: In addition to directly participating in agricultural operations, 45hp tractors are also often used for short-distance transportation of agricultural products and intra-farm handling work, such as transporting harvested crops to warehouses or processing areas, which improves the logistics efficiency of agricultural production.

5. Special applications: In some special application scenarios, such as farmland ditch dredging, small engineering operations, etc., the 45hp tractor can also play its role and meet diverse agricultural needs with its versatility and adaptability.


Product Operate Guide

A brief description of the tractor operation process: In the preparation phase, check the machine and wear safety equipment. Start smoothly after starting and adjust the speed according to needs. Adjust the tillage depth during operation and connect the farm implements to operate. After completion, slow down and stop, put the gear in neutral and turn off the engine. Safety first, regular maintenance.


Product Video



FAQ

Q1:Are you the factory or the trading company?

A1:We are the factory, we located in Taian City, Shandong Province, China.

Q2:What after-sales service can your company provide?

A2:We can provide technical support and on-site installation support!

Q3:Can you provide spare parts for free?

A3:Of course.

Q4:Can you provide OEM?

A4:Yes,we can.

Q5:How about the delivery time?

A5:5-15 days according to the different quantity.
