Model | Tavol-2204 | |
Machine parameters | Type | 4×4 |
Rated Traction( KN) | 38 | |
PTO Max Power (KW) | 125 | |
Dimensions(mm) | 5400*2430*3140 | |
Wheelbase(mm) | 2668 | |
Track(mm) | Front wheel(mm) | 1900 |
Rear wheel(mm) | 1700-2300 |
Availability: | |
---|---|
Quantity: | |
TL2204
TAVOL
8701951010

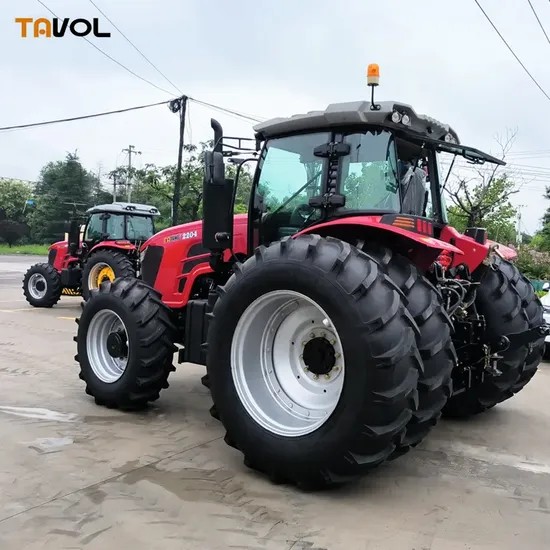

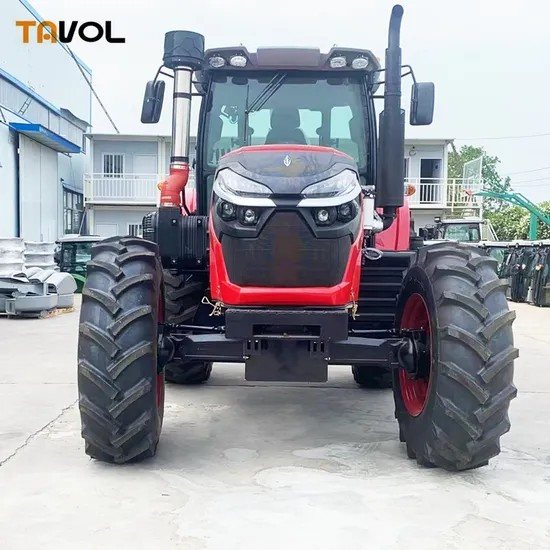

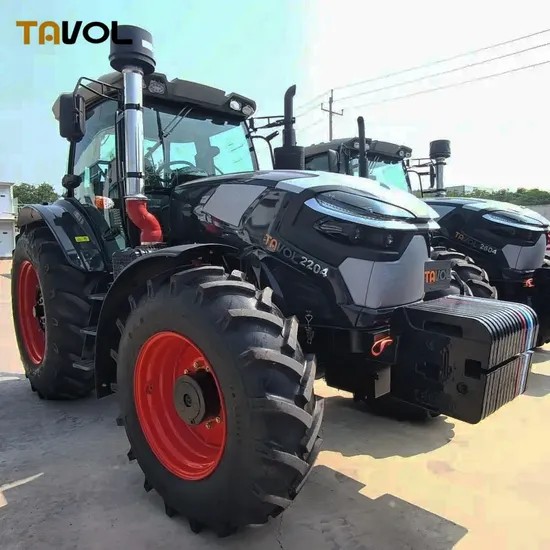

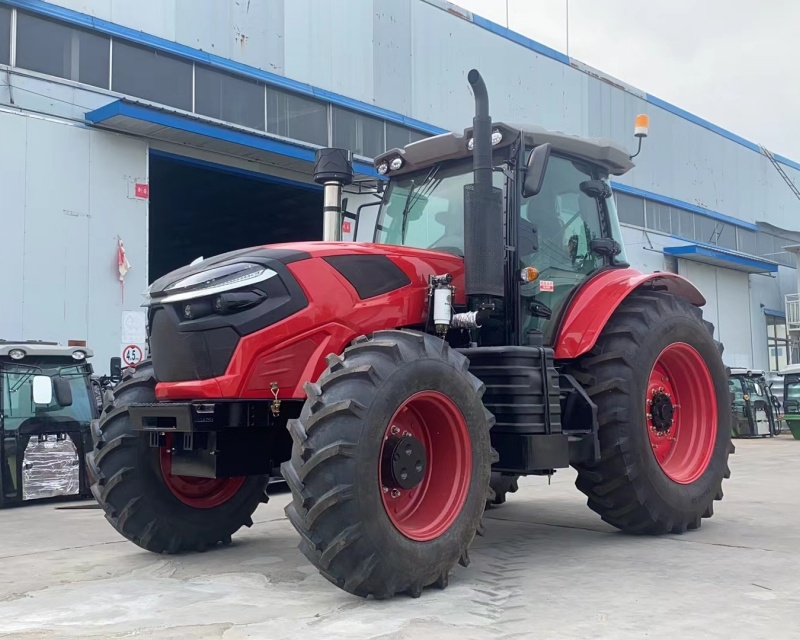

The 220hp tractor is a multi-purpose, high-horsepower agricultural wheeled tractor designed for heavy-duty operations. It uses four-wheel drive and is equipped with a high-quality engine, which is powerful and fuel-efficient. The tractor has a variety of gear options to ensure reasonable speed matching and meet the needs of various operations such as rotary tillage, plowing, and deep loosening. In addition, it is equipped with a luxurious cab to provide a comfortable driving environment, and an optional automatic driving system can be installed to improve operating efficiency and soil utilization. In short, the 220hp tractor has become an indispensable assistant in modern agriculture with its powerful performance and wide applicability.
1. Powerful power, efficient operation
Equipped with a high-efficiency engine and a powerful power output of 220hp, the tractor can operate easily in various operating environments. Whether it is deep plowing or heavy-load transportation, it can easily cope with it and greatly improve the operating efficiency.
2. Advanced transmission system, smooth operation
Equipped with advanced continuously variable transmission or power shift system, it can achieve precise speed control and gear switching, and the operation is smoother and smoother. Reduce the impact of gear shifting, improve the driving experience, and reduce fuel consumption.
3. Luxurious cab, comfortable driving
The luxurious cab with humanized design provides a spacious and comfortable driving space. Equipped with advanced seats, air conditioning system, etc., it effectively relieves driving fatigue and allows you to maintain a pleasant mood even after long-term operation.
4. Intelligent control system, precise operation
The integrated intelligent control system realizes the automation and intelligence of the operation through precise data monitoring and feedback. Help the driver to better grasp the operating status, improve the accuracy and efficiency of the operation, and reduce human operation errors.
5. Sturdy and durable, easy to maintain
The use of high-strength materials and advanced manufacturing processes ensures the durability of the overall structure of the tractor. At the same time, the well-designed maintenance structure and convenient maintenance tools make daily maintenance and troubleshooting easier and faster.
Model | Tavol-2204 | |
Machine parameters | Type | 4×4 |
Rated Traction( KN) | 38 | |
PTO Max Power (KW) | 125 | |
Dimensions(mm) | 5400*2430*3140 | |
Wheelbase(mm) | 2668 | |
Track(mm) | Front wheel(mm) | 1900 |
Rear wheel(mm) | 1700-2300 | |
Ground clearance(mm) | Minimum ground clearance(mm) | 400 |
Minimum turning cricle radius | Use unilateral braking | ≤6.2 |
Not unilateral braking | ≤7.0 | |
Minimum use quality | 6400 | |
Gearbox | 16F+16R Shuttle Shift | |
Steering System | hydraulic steering gear | |
Drive Train | Clutch | double acting clutch |
Working equipment | Maximum lifting force at 610mm(KN) | ≥35 |
Suspension mechanism | Three-piont suspension type 1 | |
PTO shaft | PTO Spedd(r/min) | 540/760/1000 |
Tire | Front wheel specifications | 16.9-28 |
Rear wheel specifications | 18.4-42 | |
Engine | Type | Inline, 4 stroke, Water cooled |
Cylinder | 4 | |
Optional | Cabin | AC/Heater |
Roll bar | ||
Canopy | ||
Perfusion volume | Radiater(L) | 28 |
Fuel tank(L) | 325 | |
Engine oil pan(L) | 22 | |
Driveline oil (L) | 110 | |
Lifter(L) | 65 | |
This parameter table is for reference only, everything is based on actual products |
1. Deep tillage and fine cultivation on medium-sized farms: The 220hp tractor performs well in medium-sized farms and can easily cope with heavy-duty operations such as deep plowing and deep plowing, effectively improve soil structure, and create good conditions for crop growth.
2. Combined operation and supporting use: This type of tractor is often used in conjunction with a variety of agricultural machinery such as seeders and harvesters to achieve an integrated operation process of tilling, sowing, and harvesting, thereby improving agricultural production efficiency.
3. Cash crop planting: When planting cash crops such as corn and soybeans, the efficient operation capacity of the 220hp tractor can ensure that the tillage task is completed in time, gaining valuable time for crop growth, and improving crop yield and quality.
4. Land preparation and improvement: For farmland that needs land preparation or improvement, the 220hp tractor can provide sufficient power support for soil crushing, leveling, and other operations, laying a solid foundation for subsequent planting.
5. Seasonal operations and emergency services: During the agricultural production season, especially during key periods such as spring ploughing and autumn harvest, the 220hp tractor can respond quickly to demand and provide timely and efficient operation services. It can also be used to restore farmland in emergency situations such as natural disasters.
1. Check before starting: Make sure that all parts of the tractor are in good safety and technical condition, and check the lubricating oil, fuel, coolant and tire pressure.
2. Starting operation: Depress the clutch, shift to neutral gear, and start the engine. When starting by hand, the standing position should be safe, and the crank should be removed after the engine starts.
3. Driving operation: Release the clutch slowly when starting, and avoid sudden acceleration. Pay attention to road conditions while driving, maintain a safe speed, and overloading and illegal carrying of passengers are strictly prohibited.
4. Steering and braking: Slow down before turning, and use the steering wheel to steer smoothly. When braking, gently step on the brake pedal to avoid sudden braking.
5. Stopping and maintenance: When parking, shift to neutral gear, pull the handbrake, turn off the engine and remove the key. Perform regular maintenance to ensure stable performance of the tractor.
Q1:Are you the factory or the trading company?
A1:We are the factory,we located in Taian City,Shandong Province,China.
Q2:What after-sales service can your company provide?
A2:We can provide technical support and on-site installation support!
Q3:Can you provide spare parts for free?
A3:Of course.
Q4:Can you provide OEM?
A4:Yes,we can.
Q5:How about the delivery time?
A5:5-15 days according to the different quantity.
