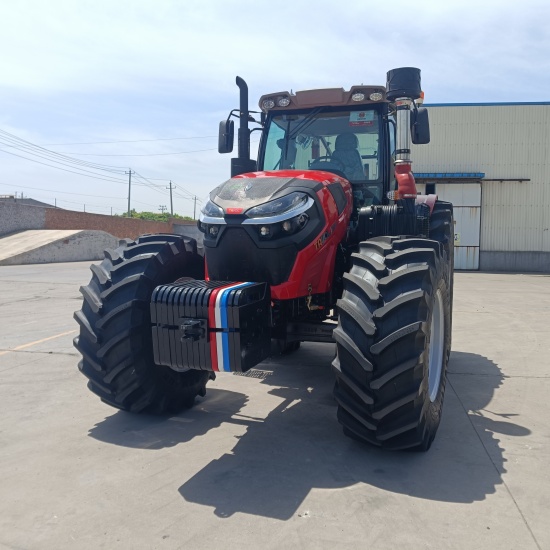

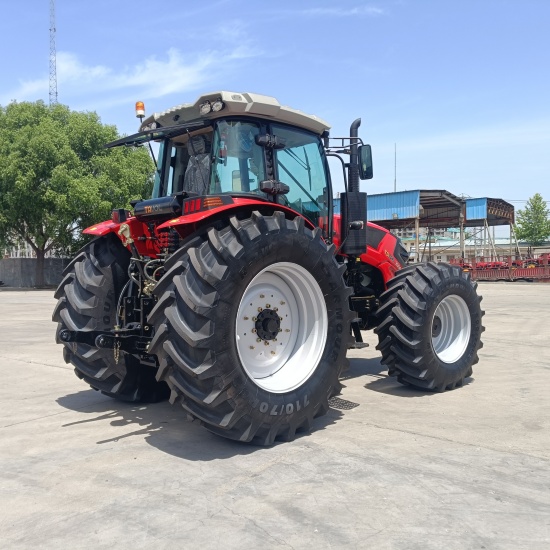

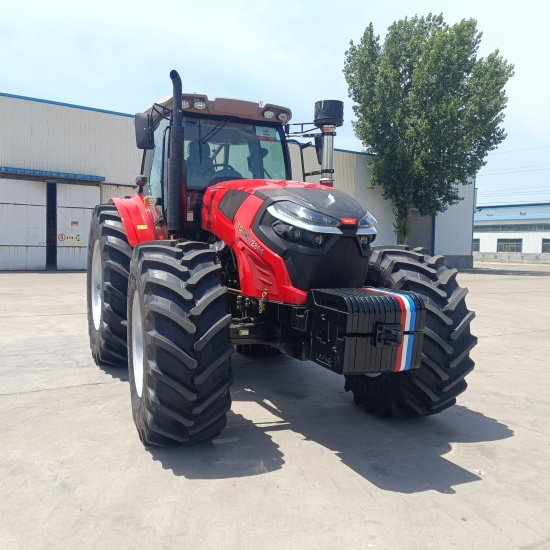

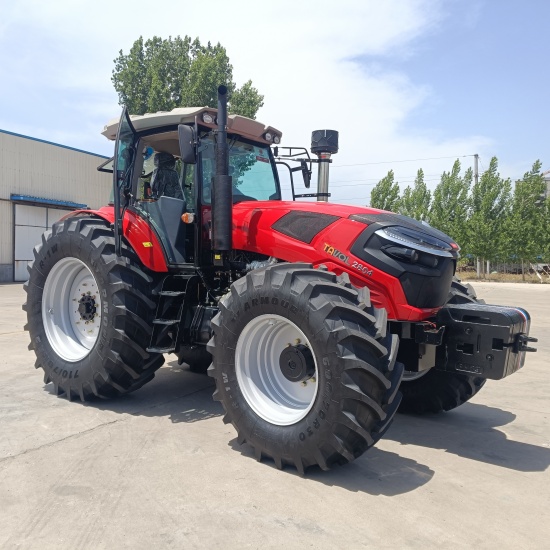

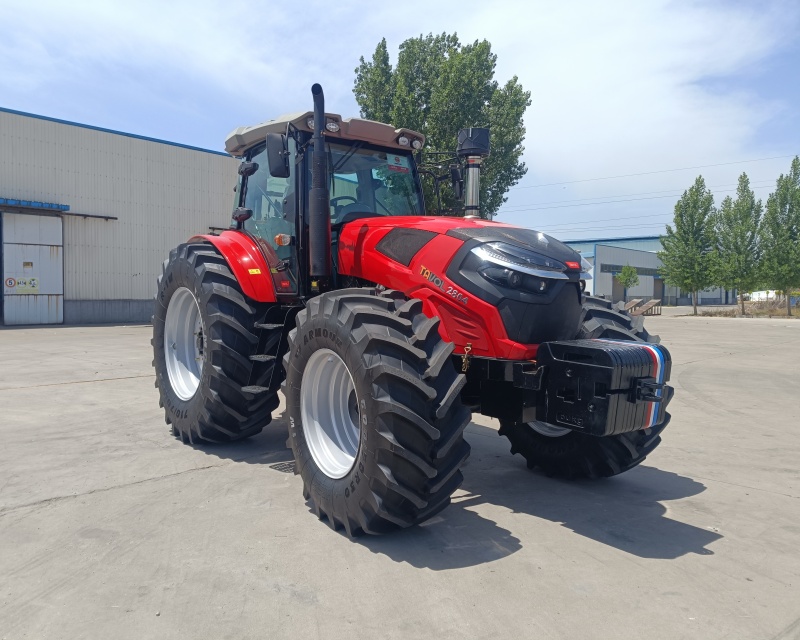

Tavol Best Agricultural Tractor 280hp Tractor 4wd Wheel Tractor

Model Tavol-2804
Machine parameters Type 4×4
Rated Traction( KN) 38
PTO Max Power (KW) 125
Dimensions(mm) 5400*2430*3140
Wheelbase(mm) 2668
Track(mm) Front wheel(mm) 1900
Rear wheel(mm) 1700-2300
Availability:
Quantity:
  • TL2804

  • TAVOL

  • 8701951010

As a high-end product in the field of agricultural mechanization, the 280hp tractor demonstrates strong traction and power performance with its excellent 280 horsepower engine as the core. It is designed for large-scale, high-efficiency farmland operations and supports a variety of complex operating environments, such as deep plowing and heavy-load transportation. It is equipped with advanced continuously variable transmission or power shifting systems to ensure smooth and precise operation. In addition, the 280hp tractor also focuses on operational comfort and intelligence, equipped with a luxurious cab and intelligent control system to improve operating efficiency and driving experience. Its sturdy and durable structural design and wide range of accessories make it an ideal choice in modern agricultural production.



Advantages and Features


1. Ultimate power, leading to efficient operations

Equipped with a top-level engine, it provides surging power of up to 280hp, ensuring that the tractor can demonstrate excellent performance in all types of heavy-duty operations. Its powerful traction can easily handle high-intensity operations such as subsoiling and plowing, significantly improving operating efficiency and productivity.


2. Advanced transmission technology, smooth control

Use advanced power shift or continuously variable transmission technology to achieve smooth and precise gear switching. Coupled with the optimized transmission system, it ensures efficient and lossless power transmission, allowing drivers to enjoy a smooth control experience in different operating scenarios.


3. Intelligent configuration, accurate and efficient

Integrated intelligent control system realizes precise control and optimization of operations through real-time monitoring and data analysis. Intelligent auxiliary driving functions, such as automatic driving systems, further reduce driving burden, improve operating accuracy and efficiency, and assist the development of agricultural modernization.


4. Luxurious cab, exclusive comfort

Equipped with a luxurious cab, using advanced sound insulation materials and humanized design, it provides drivers with a quiet and comfortable driving environment. The multi-functional operating platform and adjustable seats ensure that the machine can maintain optimal condition even during long-term operations, improving work efficiency and driving experience.


5. Durable and reliable, easy to maintain

High-quality materials and advanced manufacturing processes are selected to ensure the overall structure of the tractor is strong and durable. At the same time, the reasonably designed maintenance structure and convenient maintenance tools make daily maintenance and troubleshooting easier and faster, reducing maintenance costs and extending service life.


Technical Parameters

Model
Tavol-2804
Machine parameters
Type
4×4
Rated Traction( KN)
38
PTO Max Power (KW)
125
Dimensions(mm)
5400*2430*3140
Wheelbase(mm)
2668
Track(mm)
Front wheel(mm)
1900
Rear wheel(mm)
1700-2300
Ground clearance(mm)
Minimum ground clearance(mm)
400
Minimum turning cricle radius
Use unilateral braking
≤6.2
Not unilateral braking
≤7.0
Minimum use quality
6400
Gearbox
16F+16R Shuttle Shift
Steering System
hydraulic steering gear
Drive Train
Clutch
double acting clutch
Working equipment
Maximum lifting force at 610mm(KN)
≥35
Suspension mechanism
Three-piont suspension type 1
PTO shaft
PTO Spedd(r/min)
540/760/1000
Tire
Front wheel specifications
16.9-28
Rear wheel specifications
18.4-42
Engine
Type
Inline, 4 stroke, Water cooled
Cylinder
4
Optional
Cabin
AC/Heater
Roll bar
Canopy
Perfusion volume
Radiater(L)
28
Fuel tank(L)
325
Engine oil pan(L)
22
Driveline oil (L)
110
Lifter(L)
65
This parameter table is for reference only, everything is based on actual products



Application Scenario


1. Large-scale farmland cultivation

With its powerful power output, the 280hp tractor is very suitable for deep plowing, rotary tillage and other operations in large-scale farmland. Its high torque characteristics can easily cope with various soil conditions, ensure the uniformity of tillage depth and quality, and thus increase crop yields.


2. Complex terrain operations

In complex terrains such as mountains and hills, the 280hp tractor's four-wheel drive system and stable body design show excellent passability and stability. It can easily cross rugged ground and complete tasks such as reclamation and land preparation, providing strong support for agricultural production in these areas.


3. Use with agricultural machinery

This type of tractor can be equipped with a variety of agricultural machinery, such as seeders, harvesters, fertilizer applicators, etc., to achieve multiple uses of one machine. In the seeding season, it can complete the seeding operation quickly and accurately; in the harvesting season, it can efficiently harvest and thresh. This versatility makes the 280hp tractor an important tool for modern agricultural mechanization.


4. Farmland infrastructure construction

In addition to farming operations, 280hp tractors can also be used for the construction and maintenance of farmland infrastructure. For example, it can tow large irrigation equipment to provide sufficient water for farmland; it can also assist in laying drainage pipes to improve the drainage conditions of farmland. The improvement of these infrastructures is of great significance to improving the production capacity and disaster resistance of farmland.


5. Cross-regional operations and agricultural services

With its excellent performance and wide applicability, 280hp tractors are also often used in cross-regional operations and agricultural services. It can carry out mobile operations between different regions according to market demand and agricultural production plans, providing farmers with a full range of agricultural services such as plowing, planting, management, and harvesting. This service model not only improves the utilization rate of agricultural machinery, but also promotes the scale and specialization of agricultural production.



How to use the machine?


1. Check before starting: Make sure that all parts of the tractor are in good safety and technical condition, and check the lubricating oil, fuel, coolant and tire pressure.

2. Starting operation: Depress the clutch, shift to neutral gear, and start the engine. When starting by hand, the standing position should be safe, and the crank should be removed after the engine starts.

3. Driving operation: Release the clutch slowly when starting, and avoid sudden acceleration. Pay attention to road conditions while driving, maintain a safe speed, and overloading and illegal carrying of passengers are strictly prohibited.

4. Steering and braking: Slow down before turning, and use the steering wheel to steer smoothly. When braking, gently step on the brake pedal to avoid sudden braking.

5. Stopping and maintenance: When parking, shift to neutral gear, pull the handbrake, turn off the engine and remove the key. Perform regular maintenance to ensure stable performance of the tractor.


FAQ


Q1:Are you the factory or the trading company?

A1:We are the factory,we located in Taian City,Shandong Province,China.

Q2:What after-sales service can your company provide?

A2:We can provide technical support and on-site installation support!

Q3:Can you provide spare parts for free?

A3:Of course.

Q4:Can you provide OEM?

A4:Yes,we can.

Q5:How about the delivery time?

A5:5-15 days according to the different quantity.
