| Model | Tavol-704 | |
| Machine parameters | Type | 4×4 |
| Rated Traction( KN) | 10.5 | |
| PTO Max Power (KW) | 43 | |
| Dimensions(mm) | 4100×1880×2650 | |
| Wheelbase(mm) | 2016 | |
| Track(mm) | Front wheel(mm) | 1350/1450/1550 |
| Rear wheel(mm) | 1300-1500 | |
| Quantity: | |
|---|---|
TL704
TAVOL
8701931000

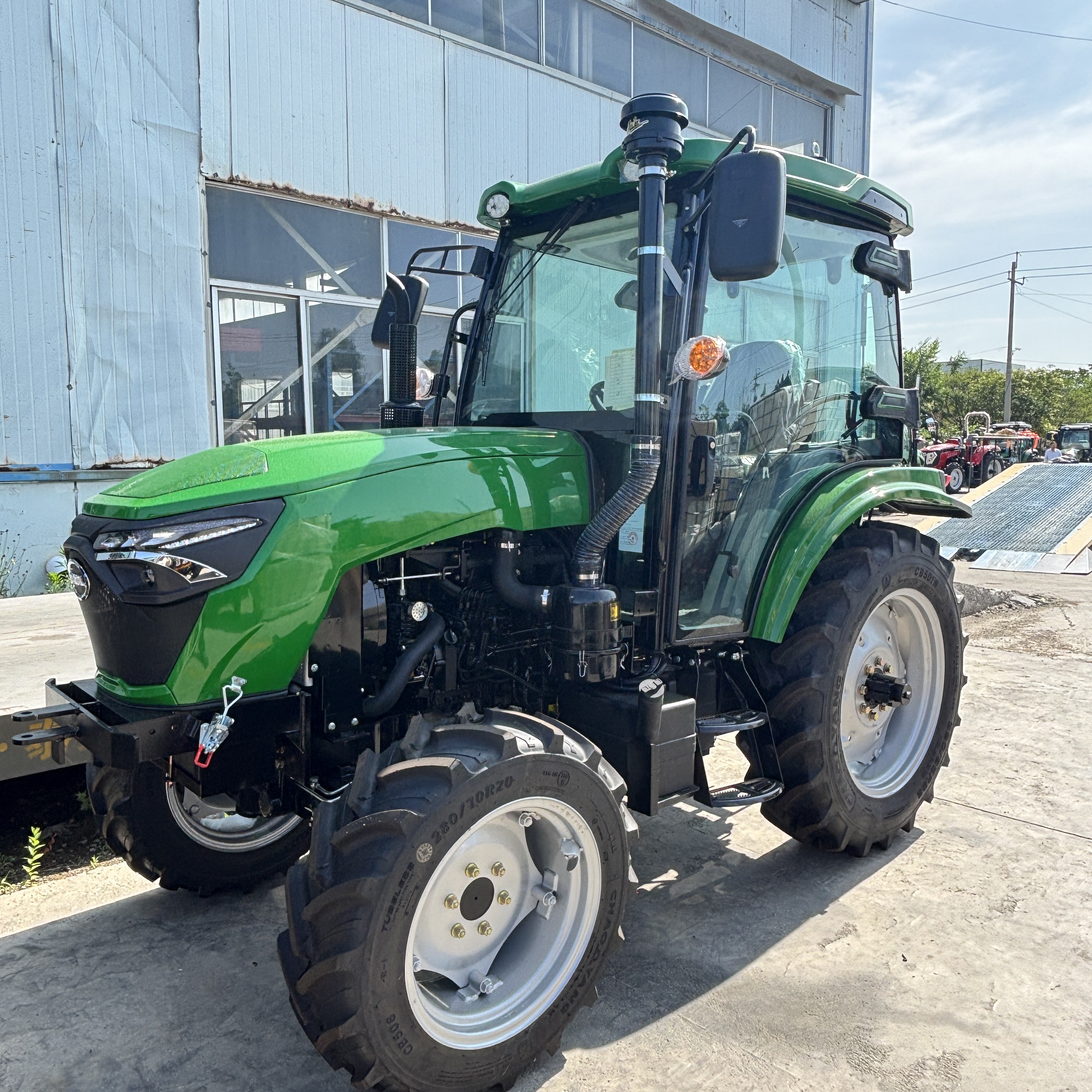

The 70hp tractor is a medium-sized agricultural machinery with strong power and wide adaptability. It is usually equipped with well-known brand engines, such as Dongfanghong, to provide stable and efficient power output.
1. Powerful power and efficient energy consumption
70hp tractors are generally equipped with well-known brand engines, such as Dongfanghong and Quanchai, which are not only powerful but also low in fuel consumption. For example, the rated power of the engine of some models can reach 51.5kW (about 70hp), with sufficient torque reserve, which can easily cope with various farmland operation needs. At the same time, the low fuel consumption characteristics help to reduce the user's use cost and improve economic benefits.
2. Multi-speed transmission system
In order to meet the needs of different operation scenarios, the 70hp tractor is equipped with a variety of speed transmission systems. Some models adopt an 8+8 shuttle gear design, which is fast and slow, and can flexibly cope with various operation speed requirements from deep plowing to transportation. In addition, there are models that provide 16+16 gearboxes or optional crawling gears to ensure reasonable speed matching and improve operation efficiency.
3. Comfortable driving experience
In order to enhance the user's driving experience, the 70hp tractor has put a lot of effort into the cab design. The fully enclosed luxury cab is equipped with air conditioning to ensure that the driver can enjoy a comfortable working environment in different seasons. In addition, the flat floor design, suspended seat and humanized control layout further reduce the driver's fatigue and improve the safety of operation.
4. High adaptability and versatility
70hp tractors play an important role in agricultural production with their high adaptability and versatility. Whether it is dry land or paddy field, it can be easily dealt with by replacing different tires and agricultural implements. At the same time, the tractor can be mounted with a variety of agricultural machinery, such as plows, rotary tillers, seeders, harvesters, etc., to achieve full mechanization of ploughing, sowing, intertillage management, harvesting, etc., greatly improving agricultural production efficiency.
5. Intelligent and convenient maintenance
Some advanced 70hp tractors also incorporate intelligent technologies, such as GPS/Beidou system real-time positioning, driving trajectory recording, fault diagnosis and other functions, to provide users with accurate services and convenient guidance. In addition, the tractor also takes convenience into consideration in terms of maintenance, such as the use of direct return oil filter, visual filter element pollution blockage alarm device and other designs to ensure the cleanliness of the hydraulic system, while facilitating users to carry out daily maintenance and maintenance.
Model | Tavol-704 | |
Machine parameters | Type | 4×4 |
Rated Traction( KN) | 10.5 | |
PTO Max Power (KW) | 43 | |
Dimensions(mm) | 4100×1880×2650 | |
Wheelbase(mm) | 2016 | |
Track(mm) | Front wheel(mm) | 1350/1450/1550 |
Rear wheel(mm) | 1300-1500 | |
Ground clearance(mm) | Minimum ground clearance(mm) | 400 |
Minimum turning cricle radius | Use unilateral braking | ≤4.0 |
Not unilateral braking | ≤4.6 | |
Minimum use quality | 2270 | |
Gearbox | 12F+12R Shuttle Shift | |
Steering System | hydraulic steering gear | |
Drive Train | Clutch | double acting clutch |
Working equipment | Maximum lifting force at 610mm(KN) | ≥12 |
Suspension mechanism | Three-piont suspension type 1 | |
PTO shaft | PTO Spedd(r/min) | 540/760/1000 |
Tire | Front wheel specifications | 8.3-20 |
Rear wheel specifications | 12.4-28 | |
Engine | Type | Inline, 4 stroke, Water cooled |
Cylinder | 4 | |
Optional | Cabin | AC/Heater |
Roll bar | ||
Canopy | ||
This parameter table is for reference only, everything is based on actual products | ||
1. Land cultivation and land preparation: The 70hp tractor is equipped with different types of plows, rotary tillers and other agricultural implements, which can effectively carry out deep ploughing, shallow ploughing, rotary tillage and land leveling operations to create good soil conditions for sowing and crop growth.
2. Sowing and fertilization: By mounting a seeder or fertilizer device, the tractor can accurately control the amount of seeds and fertilizers to achieve efficient and uniform sowing and fertilization operations, and improve crop yield and quality.
3. Intertillage management: During the growth of crops, the 70hp tractor can be used for intertillage management operations such as weeding, loosening soil, and soil cultivation to reduce weed competition, improve soil aeration, and promote healthy crop growth.
4. Preparation before harvest: For crops that require mechanical harvesting, the tractor can be mounted with equipment such as a mower and sunning machine and a straw returner to cut crops, dry them and process straw before harvesting, in preparation for subsequent mechanized harvesting.
5. Irrigation and drainage: In arid or waterlogged areas, by installing irrigation pumps or drainage devices, 70hp tractors can participate in the construction and operation of irrigation systems, or perform field drainage operations to ensure crop water needs and prevent waterlogging disasters.
6. Small farms and cooperatives: For small and medium-sized farms and agricultural cooperatives, 70hp tractors have become ideal agricultural mechanization equipment due to their moderate power and versatility, and can flexibly respond to diverse agricultural production needs.
7. Special crop planting: In the planting of special crops such as fruit trees and vegetable greenhouses, 70hp tractors can be equipped with special agricultural tools to carry out fine operations such as inter-row management, fertilization, and pest and disease control to improve planting efficiency and crop quality.
1. Check before starting: Make sure that all parts of the tractor are in good safety and technical condition, and check the lubricating oil, fuel, coolant and tire pressure.
2. Starting operation: Depress the clutch, shift to neutral gear, and start the engine. When starting by hand, the standing position should be safe, and the crank should be removed after the engine starts.
3. Driving operation: Release the clutch slowly when starting, and avoid sudden acceleration. Pay attention to road conditions while driving, maintain a safe speed, and overloading and illegal carrying of passengers are strictly prohibited.
4. Steering and braking: Slow down before turning, and use the steering wheel to steer smoothly. When braking, gently step on the brake pedal to avoid sudden braking.
5. Stopping and maintenance: When parking, shift to neutral gear, pull the handbrake, turn off the engine and remove the key. Perform regular maintenance to ensure stable performance of the tractor.
Q1:Are you the factory or the trading company?
A1:We are the factory,we located in Taian City,Shandong Province,China.
Q2:What after-sales service can your company provide?
A2:We can provide technical support and on-site installation support!
Q3:Can you provide spare parts for free?
A3:Of course.
Q4:Can you provide OEM?
A4:Yes,we can.
Q5:How about the delivery time?
A5:5-15 days according to the different quantity.
